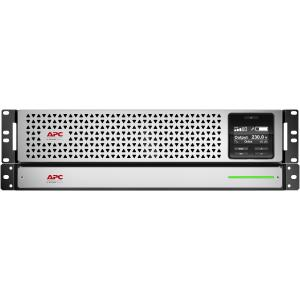

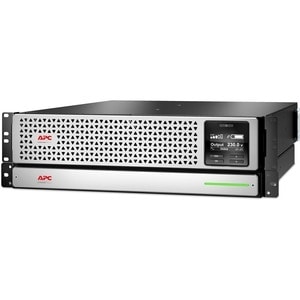

Apc - Schneider Smart-Ups Srt Li-Ion 1500Va Rm 230V Nc Srtl1500Rmxli-Nc

SKU
287392
Brand
Apc - Schneider
Manufacturer Link
MPN
SRTL1500RMXLI-NC
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$6,479.00
Buy Now And Earn 6479 Reward Points!
Add to Compare

SRTL1500RMXLI-NC Features

APC Smart-UPS SRT Li-Ion 1500VA RM 230V Network Card
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Comms cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Rack/Tower convertible
    Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Smart-UPS On-Line Features & Benefits

Availability

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Scalable runtime
Allows additional run time to be quickly added as needed.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Manageability

LED status indicators
Quickly understand unit and power status with visual indicators.
Serial connectivity
Provides management of the UPS via a serial port.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
SmartSlot
Customize UPS capabilities with management cards.
Network manageable
Provides remote power management of the UPS over the network.

Adaptability

Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Serviceability

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Audible alarms
Provides notification of changing utility power and UPS power conditions

Protection

Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Cold-start capable
Provides temporary battery power when the utility power is out.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

Marketing Features

Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Save time with easy and convenient remote/network accessibility.
Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Basic
Backup/Run Time (Full Load): 21.30 Minute
Brand Name: APC by Schneider Electric
Form Factor: Rack/Tower
Hot Swappable: Yes
Input Voltage Range: 80 V AC - 150 V AC
Input Voltage: 230 V AC
Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.35 kW
Network (RJ-45): Yes
Plug/Connector Type: IEC 60320 C14
Product Family: Smart-UPS SRT
Product Type: Dual Conversion Online UPS
Rack Height: 3U
Receptacles: 8 x IEC 60320 C13
Waveform Type: Sine Wave
Battery Information
Backup/Run Time (Full Load): 21.30 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 6 Hour
General Information
Brand Name: APC by Schneider Electric
Manufacturer Part Number: SRTL1500RMXLI-NC
Manufacturer Website Address: http://www.schneider-electric.com.au
Manufacturer: Schneider Electric SA
Product Line: Smart-UPS SRT
Product Name: Smart-UPS SRT 1.5KVA Tower/Rack Mountable UPS
Product Type: Dual Conversion Online UPS
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Depth: 590 mm
Form Factor: Rack/Tower
Height: 128 mm
Rack Height: 3U
Weight (Approximate): 25.70 kg
Width: 432 mm
Power Description
Input Voltage Range: 80 V AC - 150 V AC
Input Voltage: 230 V AC
Load Capacity: 1.50 kVA/1.35 kW
Output Voltage: 220 V AC
  230 V AC
  240 V AC
Waveform Type: Sine Wave
Technical Information
Plug/Connector Type: IEC 60320 C14
Receptacles: 8 x IEC 60320 C13
Marketing TextAPC Smart-UPS SRT Li-Ion 1500VA RM 230V Network Card. High density, double-conversion on-line power protection with scalable runtime
PI DateMar 2019
Brand NameAPC
Manufacturer Web Sitehttp//www.apc.com
Product LineSmart-UPS
Product ModelSRTL1500RMXLI-NC
Product TypeUninterruptible Power Supply
Input ConnectionIEC-320 C14
Output Connection8 x IEC 320 C13
SmartSlotYes
SmartSlot Card InstalledAP9631
Input Voltage80 - 150Volt
Output Power1350Watt
Output Voltage230Volt
Surge Energy Rating340Joules
Input Frequency40 - 70Hz
Output Frequency50 - 60Hz
WaveformSinewave
Depth (mm)590.0
Height (mm)128.0
Width (mm)432.0
Weight (Kg)30.5
ColourBlack
Other Features* Provides early-warning fault analysis on batteriesk
* ECO Mode
* LCD Graphics Display
Rack Height3U
Control Panel* Multi-function LCD status and control console
Audible Alarm* Audible and visible alarms prioritized by severity
Operating Temperature0 - 40°C
Environmental Compliance* RoHS
Warranty Information5 Years
