APC SMART-UPS LITHIUM ION, SHORT DEPTH 1500VA, 230V WITH SMARTCONNECT, 5 YEAR WTY SMTL1500RMI3UC

SKU
367255
Brand
MPN
SMTL1500RMI3UC
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$3,375.00
Buy Now And Earn 3375 Reward Points!

SMTL1500RMI3UC Features

Key Features


Run time for load
Min-max: 150-1350 W
W

5m 8s
Max. Capacity Used



100%
Output power capacity
1.35kWatts / 1.5kVA
Rack Height
3U
Output Connections
(6) IEC 60320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60320 C14

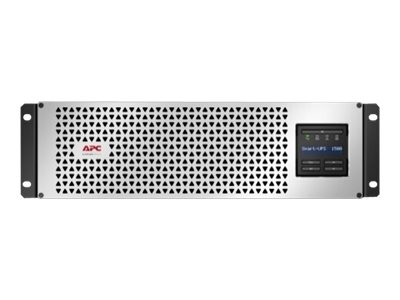

APC Smart-UPS Lithium Ion, Short Depth 1500VA, 230V with SmartConnect
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: Installation guide, Rack mounting support rails, Smart UPS signalling RS-232 cable, USB cable

  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Energy meter
    Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utility costs, generates less heat.
  • Lithium-ion battery
    Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
  • Predictive replace battery date
    Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Short-depth rack compatibility
    Compact design fits comfortably in short-depth rack applications.
  • Single switched outlet group
    Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • SmartConnect
    Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • SmartSlot
    Customize UPS capabilities with management cards.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits

Serviceability

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Resettable circuit breakers
Enables a quick recovery from overload events.
Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Adaptability

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Product Description APC Smart-UPS Li-Ion 1500VA Short Depth with SmartConnect - UPS - 1.35 kW - 1500 VA
Device Type UPS - rack-mountable / external
Rack Size 3U
Weight 19.5 kg
Input Voltage AC 230 V
Output Voltage AC 230 V ? 5%
Power Capacity 1.35 kW / 1500 VA
Input Connectors 1 x power IEC 60320 C14
Output connectors 6 x power IEC 60320 C13
Battery Lithium ion
Networking RS-232, USB
Dimensions (WxDxH) 43.8 cm x 30.2 cm x 13.1 cm
Manufacturer Warranty 5-year warranty
Designed For P/N: AR106SH4, AR106SH6, AR106V, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP
APC SMART-UPS LITHIUM ION, SHORT DEPTH 1500VA, 230V WITH SMARTCONNECT, 5 YEAR WTY
