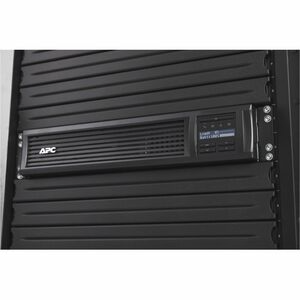

APC Smart-UPS Line Interactive 2200VA, Lithium-ion, Rack, 2U, 230V, 8x IEC C13 + 1x IEC C19, SmartConnect+SmartSlot, AVR, LCD SMTL2200RMI2UC
APC Smart-UPS Line Interactive 2200VA, Lithium-ion, Rack, 2U, 230V, 8x IEC C13 + 1x IEC C19, SmartConnect+SmartSlot, AVR, LCD
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 and 1x IEC 320 C19 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- Experience higher efficiency with lower energy cost
- Up to 7.45 minute runtime on full load to preserve critical data from power shortage interruptions
- 2.20 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 1.98 kW load capacity
| Display | LCD |
| Additional Warranty Information | 5 year repair or replace and 5 year warranty on Lithium-ion battery. |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Sound Emission | 55 dB |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3.05 km |
| Maximum Storage Elevation | 7.62 km |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| Network Management | SmartConnect |
| SmartSlot | |
| Alarm | Low Battery |
| On Battery |
| Battery Life | 10 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Half Load) | 15.60 Minute |
| Backup/Run Time (Full Load) | 7.45 Minute |
| Typical Battery Recharge Time | 2 Hour |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| 240 V AC | |
| 220 V AC | |
| Input Current | 16 A |
| Surge Energy Rating | 739 J |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 160 V AC - 286 V AC |
| Output Frequency | 60 Hz |
| 50 Hz | |
| Input Frequency | 60 Hz |
| 50 Hz | |
| Load Capacity (VA) | 2.20 kVA |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMTL2200RMI2UC |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 2200VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Weight (Approximate) | 33.30 kg |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 86 mm |
| Width | 432 mm |
| Depth | 683 mm |
| Product Color | Black |
| Silver | |
| Color Family | Dual Colour |
| Application/Usage | Office |
| Server | |
| Virtual Machine | |
| Electronic | |
| Hyperconverged Infrastructure (HCI) | |
| Infrastructure | |
| IT | |
| Network | |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| AVR | Yes |
| Transfer Time | 10 ms |
| Receptacle Detail | 1 x IEC 60320 C19 |
| 8 x IEC 60320 C13 |
