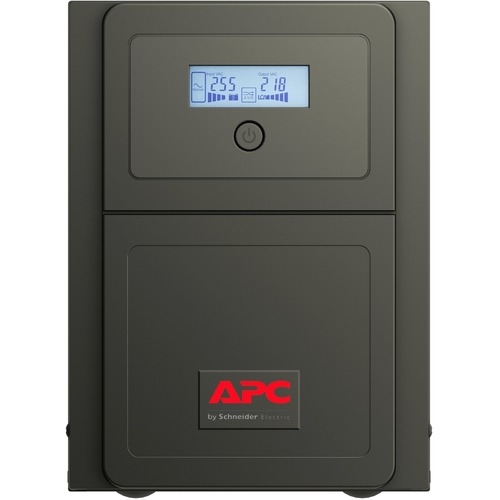

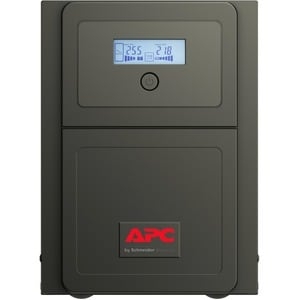

APC by Schneider Electric Easy UPS Line-interactive UPS - 1 kVA/700 W - Tower - AVR - 4 Hour Recharge - 3.60 Minute Stand-by - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 SMV1000CAI
SKU
390907
Brand
MPN
SMV1000CAI
Warranty
Standard Manufacturer's Warranty
$523.00
Buy Now And Earn 523 Reward Points!
APC by Schneider Electric Easy UPS Line-interactive UPS - 1 kVA/700 W - Tower - AVR - 4 Hour Recharge - 3.60 Minute Stand-by - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13
UPS with the best value for money with backup battery & surge protection for electronics and computers
For our home and small office customers, Schneider Electric's APC offers a new category of UPSs designed for the essential power protection needs even in the most unstable power conditions, introducing APC Easy UPS. APC Easy UPS is a versatile UPS developed to handle inconsistent power conditions and at the same time guarantee the quality of millions of professionals around the world.
Guides & Documents
-
Brochure
Controls/Indicators
| Status Indicators |
LCD Graphics Display:
LED Indicators:
|
Interfaces/Ports
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
Management
| Alarm | On Battery |
| Overload | |
| Low Battery |
Physical Characteristics
| Weight (Approximate) | 13.60 kg |
| Form Factor | Tower |
| Height | 220 mm |
| Width | 160 mm |
| Depth | 410 mm |
Battery Information
| Battery Chemistry | Lead Acid |
| Battery Capacity | 7000 mAh |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 12.10 Minute |
| Backup/Run Time (Full Load) | 3.60 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Typical Battery Recharge Time | 4 Hour |
Environmental Conditions
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 3 km |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | -10°C - 40°C |
| Sound Emission (A-Weighted) | 45 dB(A) |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMV1000CAI |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy UPS 1kVA Tower UPS |
| Product Line | Easy UPS |
| Brand Name | APC by Schneider Electric |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Load Capacity | 1 kVA/700 W |
| Waveform Type | Sine Wave |
| Input Voltage Range | 160 V AC - 295 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 65 Hz |
Technical Information
| Application/Usage | SOHO Office |
| Electronic | |
| Office | |
| Computer | |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| AVR | Yes |
| Transfer Time | 2 ms |
| Receptacle Detail | 6 x IEC 60320 C13 |
