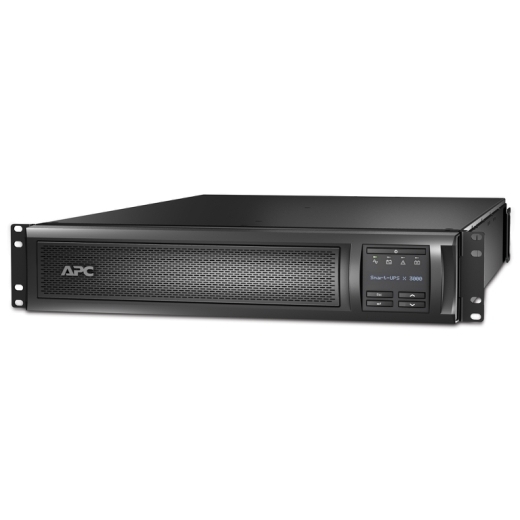

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V SMX3000RMHV2U

SKU
305462
Brand
Apc
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
In stock
$4,395.00
Buy Now And Earn 4395 Reward Points!
Add to Compare

Key Features


Run time for loadW
6m 15s
Max. Capacity Used


100%
Output power capacity
2.7kWatts / 3.0kVA
Rack Height
2U
Output Connections
(1) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
208V, 230V
Input Connections
BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Cord Length
1.8meters
APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Rack mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User manual

Smart-UPS Features & Benefits

Availability

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Manageability

Network manageable
Provides remote power management of the UPS over the network.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Audible alarms
Provides notification of changing utility power and UPS conditions.
LED status indicators
Quickly understand unit and power status with visual indicators.
BATTERY
Type Sealed Lead Acid
CONNECTION
Input Connection 1 x IEC-320 C20
Output Connection 8 x IEC 320 C13
SmartSlot Yes
Interface 1 x SmartSlot
DIMENSIONS
Depth (mm) 667.0
Height (mm) 85.0
Width (mm) 432.0
Weight (Kg) 37.3
POWER
Input Voltage 230 Volt
Output Power 2700 Watt
Output Voltage 230 Volt
Surge Energy Rating 645 Joules
Input Frequency 47 - 63 Hz
Output Frequency 47 - 63 Hz
Waveform Sinewave



PRODUCT
Brand Name APC
Manufacturer Web Site http://www.apc.com/
Product Line Smart-UPS
Product Type Uninterruptible Power Supply
OTHER FEATURES
Colour Black
Cord Length 1.83 m
Other Features * Boost and Trim Automatic Voltage Regulation (AVR)
* Intelligent battery management
* Power conditioning
* Temperature-compensated battery charging
* Automatic restart of loads after UPS shutdown

Rack Height 2 U
Control Panel LED status display with On Line : On Battery : Replace Battery and Overload indicators,Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Operating Temperature 0 - 40 ��C
Environmental Compliance RoHS
