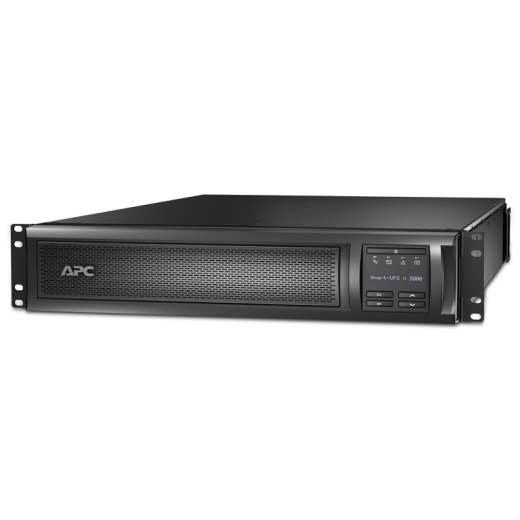

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card SMX3000RMHV2UNC

SKU
305463
Brand
Warranty
1 Year Manufacturer's return to base
Availability
Preorder (Contact Us)
$5,116.00
Buy Now And Earn 5116 Reward Points!

Key Features


Run time for loadW
6m 15s
Max. Capacity Used


100%
Output power capacity
2.7kWatts / 3.0kVA
Rack Height
2U
Output Connections
(2) IEC Jumpers (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(1) IEC 320 C19 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
208V, 230V
Input Connections
BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Cord Length
8.01ft (2.4meters)
APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Rack mounting support rails, Smart UPS signalling RS-232 cable, Temperature probe, User manual, Web/SNMP management card

Smart-UPS Features & Benefits

Availability

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Manageability

Network manageable
Provides remote power management of the UPS over the network.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Audible alarms
Provides notification of changing utility power and UPS conditions.
LED status indicators
Quickly understand unit and power status with visual indicators.

Marketing features

Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry���s most rigorous standards.
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world���s most trusted network UPS with over 25 million units sold.
Smarter productivity with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute�� Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
BATTERY
Type Sealed Lead Acid
CONNECTION
Input Connection 1 x IEC-320 C20
Output Connection 8 x IEC 320 C13
SmartSlot Yes
Interface 1 x SmartSlot
DIMENSIONS
Depth (mm) 667.0
Height (mm) 85.0
Width (mm) 432.0
Weight (Kg) 37.3
POWER
Input Voltage 230 Volt
Output Power 2700 Watt
Output Voltage 230 Volt
Surge Energy Rating 645 Joules
Input Frequency 50 - 60 Hz
Output Frequency 47 - 53 Hz
Waveform Sinewave



PRODUCT
Brand Name APC
Manufacturer Web Site http://www.apc.com/
Product Line Smart-UPS
Product Type Uninterruptible Power Supply
OTHER FEATURES
Colour Black
Cord Length 2.44 m
Other Features * APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card
* Boost and Trim Automatic Voltage Regulation (AVR)
* Intelligent battery management
* Power conditioning
* Temperature-compensated battery charging
* Automatic restart of loads after UPS shutdown

Rack Height 2 U
Control Panel LED status display with On Line : On Battery : Replace Battery and Overload indicators,Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Operating Temperature 0 - 40 ��C
Environmental Compliance RoHS
