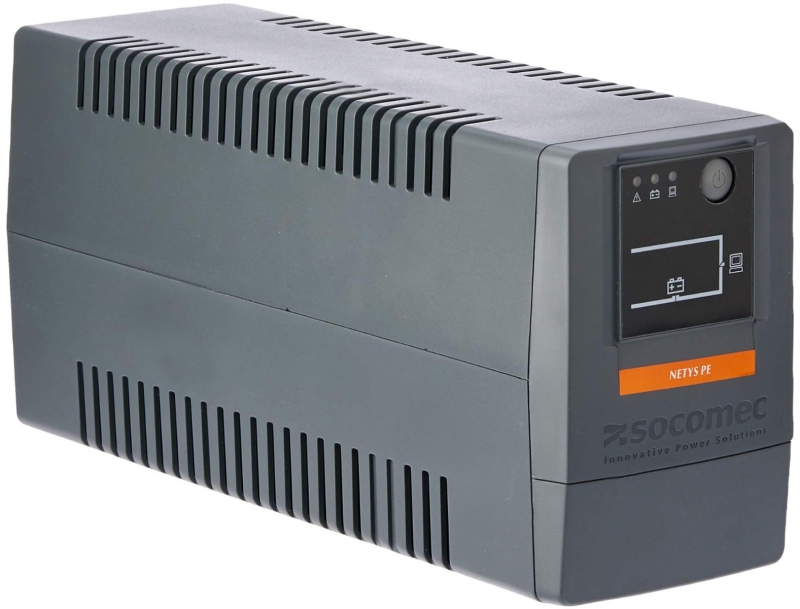

The NeTYS PE 650VA Tower UPS is line Interactive and the ideal way to protect IT applications at home, the office, or in retail environments when the input power source or mains power fails. Perfect for CAD and graphics workstations, multimedia peripherals, LCD screens, monitors and Point of Sale systems. This unit provides 15 minutes of back-up time, see the Technical Data sheet below for details on the differences between each model.

FEATURES

Cost-effective way to protect SOHO or POS applications.
Easy to use control panel with graphical LCD/LED monitor.
Protect from network power cuts and voltage fluctuations.
Integrated AVR to stabilise output voltage, avoid drops when switching to battery.
Simple connection: IEC 320 sockets for IT peripherals.
Integrated NTP protection for LAN/ADSL connection against the risk of data line overvoltage.

SPECIFCATIONS

Quasi Sinewave.
650VA.
Tower only.
USB comm's port and cable.
Local View free software.
Data line protection ports.
2 x 3 pin Aust output sockets.
Includes 3 pin Australian input cord.
CONNECTIONS

1. Output sockets
2. USB port
3. Mains input cable
4. Circuit breaker
5. NTP data line suppressor
6. Fan

Control panel

1. Alarm
2. Operation with battery
3. Normal operation
4. On / Off
5. Load present
6. Load level (5 steps)
7. General Alarm
8. Battery fault / Replace the battery
9. Overload
10. Battery capacity
11. Normal mode / Battery mode (flashing)
12. Automatic Voltage / Regulation active

TECHNICAL DATA
Sn [kVA] 650 VA 800 VA 1000 VA 1500 VA 2000 VA
Pn [kW] (0°C - 35°C) 360 W 480 W 600 W 900W 1200W
Input / output 1/1
Input
Mains voltage 177 V - 290 V
Rated frequency 50 / 60 Hz with automatic selection
Mains connection Cable with plug
Output
Automatic Voltage Regulation (AVR)
Rated voltage 230V ±10%
Rated frequency 50/60 Hz
Wave form Step wave
Protection Overload, significant discharge and short circuit
Sockets 650-850: 2 x Australian standard 1000-1500-2000: 4 x Australian standard
Batteries
Type Sealed lead-acid maintenance free - expected life 3/5 years
Back-up time (1) 15 Min 20 Min 45 Min 55 Min 60 Min
Communication
Interface USB
Local communication software Local View
Telephone protection NTP data line suppressor
UPS Cabinet
Dimensions (W x D x H) [mm] 100 x 290 x 145 145 x 345 x 165 mm 145 x 390 x 205 mm
Weight 5.2 kg 6 kg 9.7 kg 11.2 kg 12 kg
Standards
Safety AS 62040-1
EMC AS 62040-2
Product declaration CE, C-Tick (N876)
Warranty

2-year limited warranty.
