SR24 240MM Aio CPU Water Cooler SR24 AIO CPU

SKU
296823
Brand
MPN
SR24 AIO CPU
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$163.00
Buy Now And Earn 163 Reward Points!

QUICK OVERVIEW

-1151, B Lga-1366, Lga 2011-v3, H3 Lga-1150, R4 Lga-2066, R Lga-2011, H Lga-1156, H2 Lga-1155, Lga-1200 - Compatible AMD Socket: FM1, AM2+ Pga-940, AM3+, FM2, AM2 Pga-940, AM3 Pga-941, FM2+, AM4, TR4 - Argb LED - Aluminium Radiator SR24 AIO CPU

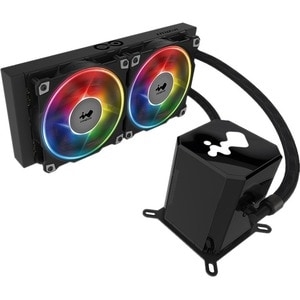

TWIN TURBINES LIQUID CPU COOLER

Patented Integrated Twin Turbines

The patented twin-turbine function runs parallel with one another and functions simunateously to push both currents toward the copper cold-plate to significantly reduce the temperature and keep hardware cool.

Cautionary LEDs

The pump illuminates a white LED logo under normal circumstances. If it detects an unusual current or excessive heat, the LEDs will flash red and blue to prevent damaging components.

Radiator Fans that Flow!

The Jupiter series AJF120 case fans are specially designed for liquid-cooling. The fans feature high airflow (101.5 CFM), high static pressure (4.22mm H2O) and possesses a high-speed mode that ramp up the RPMs to 2500.

Approach to Noise Reduction

The noise of an All-In-One liquid cooling radiator is difficult to control. The main reason is because of the way the high airflow sounds when it runs through the traditional radiator fins. To combat this, the SR series feature the AJF120 fans to provide the best operation performance, while reducing noise pollution.

Array of Microchannel Fins

The SR series possesses a high waterflow pump, which enhances cooling performance directly on the copper plate to cool the CPU. The copper plate hosts an array of microchannel fins that dissipates heat.

Syncs with Addressable Motherboards

There are about 16.8 million ARGB color possibilities, which means the AJF120 case fans allow the customization to meet your build's standards. Users can choose to control lighting independently by using the One-Click controller included or to sync with an addressable motherboard (3-pin, 5V).
Application/Usage Processor
Product Type Cooling Fan/Radiator/Water Block/Pump
Connectors 4-pin PWM, 3-pin ARGB
Product Model IW-LC-SR24
Brand Name In Win
Cooler Type Liquid Cooler
Number of Fans 2
Product Family SR
LED Color ARGB
Maximum Airflow 172.45m³/h
Fan Speed (Max) 2500 rpm
Maximum Fan Diameter 120 mm
Compatible Intel Socket LGA-1200, R LGA-2011, R4 LGA-2066, LGA 2011-v3, H4 LGA-1151, H3 LGA-1150, B LGA-1366, H LGA-1156, H2 LGA-1155
Compatible AMD Socket FM2, FM2+, TR4, AM4, FM1, AM3+, AM3 PGA-941, AM2+ PGA-940, AM2 PGA-940
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Fan Bearing Type Dual Ball Bearing
Noise Levels (A-Weighted) 23 dB(A)
Manufacturer Part Number SR24 AIO CPU
Manufacturer Website Address http://www.in-win.com.tw/Corporate/zh/
Packaged Quantity 1
Manufacturer In Win Development, Inc
Product Name Twin Turbines Liquid CPU Cooler
Product Series SR
Package Contents • Twin Turbines Liquid CPU Cooler • 2 x InWin AJF120 Addressable Fan • ARGB One-Click Controller • Fan and Radiator Mounting Screws Pack • Mounting Kit for CPU Sockets • Cable Pack
Environmentally Friendly Yes
Material Details • Copper Water Block • Copper Plate • Rubber Tubing • Plastic Pump • Nylon Tubing
Weight (Approximate) 1.50 kg
Radiator Height 120 mm
Radiator Width 27 mm
Radiator Depth 277 mm
Fan Height 26 mm
Fan Width 120 mm
Fan Depth 120 mm
Water Block Height 100 mm
Water Block Width 68 mm
Water Block Depth 68 mm
Radiator Material Aluminium
Fan Diameter Details 2 x 120mm
Shipping Dimensions Height 13.5, Width 26.8, Length 33.4, Shipping Weight 2.13 KG
