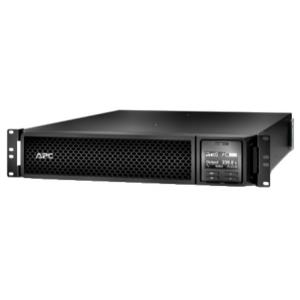

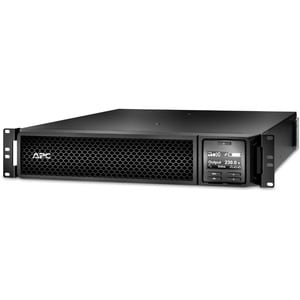

Apc - Schneider APC Smart-UPS SRT 1000VA RM 230V SRT1000RMXLI
SKU
372473
Brand
MPN
SRT1000RMXLI
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$2,871.00
Buy Now And Earn 2871 Reward Points!
High density, double-conversion on-line power protection with
scalable runtime. Ensures the product has been tested and
approved to work safely with the connected service provider
equipment and within the specified environment.
Guides & Documents
Controls/Indicators
| Status Indicators |
LCD Graphics Screen |
Miscellaneous
| Software Included | APC Powerchute Network Shutdown Software |
| Environmentally Friendly | Yes |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
Physical Characteristics
| Weight (Approximate) | 21 kg |
| Form Factor | Tower/Rack Convertible |
| Rack Height | 2U |
| Height | 85 mm |
| Width | 432 mm |
| Depth | 505 mm |
Battery Information
| Battery Chemistry | Lead Acid |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 21.10 Minute |
| Backup/Run Time (Full Load) | 8.40 Minute |
| Battery Characteristics | Maintenance-free, Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| 230 V AC | |
| 240 V AC | |
| Load Capacity | 1 kVA/1 kW |
| Surge Energy Rating | 432 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 50 V AC 150 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
General Information
| Product Type | Dual Conversion Online UPS |
| Manufacturer Part Number | SRT1000RMXLI |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 1KVA Tower/Rack Convertible UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
Environmental Conditions
| Sound Emission | 50 dB(A) |
| Thermal Dissipation | 317 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 15 km |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | -20°C - -50°C |
Technical Information
| Application/Usage | Server |
| IT Equipment | |
| Medical | |
| Voice/Data Network | |
| Computer | |
| Industry | |
| Plug/Connector Type | British BS1363A |
| IEC 60320 C14 | |
| SCHUKO CEE 7 EU1-16P | |
| Receptacle Type | IEC 60320 C13 |
| Transfer Time | 0 ns |
| Receptacle Detail | 6 x IEC 60320 C13 |
