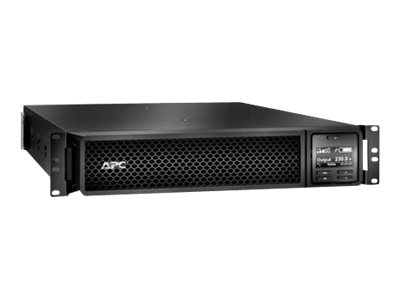

APC SMART-UPS (SRT), 1000VA, RM 230V, NC, 3YR WTY SRT1000RMXLI-NC

SKU
372431
Brand
MPN
SRT1000RMXLI-NC
Warranty
Standard Manufacturer's Warranty
Availability
Preorder 3-4 weeks
Freight Estimate
$2,939.00
Buy Now And Earn 2939 Reward Points!

SRT1000RMXLI-NC Features

Key Features


Run time for load
Min-max: 100-1000 W
W

8m 27s
Max. Capacity Used



100%
Output power capacity
1.0kWatts / 1.0kVA
Rack Height
2U
Output Connections
(6) IEC 320 C13 (Battery Backup)
(6) IEC 60320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
BS1363A British, IEC 60320 C14, Schuko CEE 7 / EU1-16P
Cord Length
1.8meters
APC Smart-UPS SRT 1000VA RM 230V Network Card
High density, double-conversion on-line power protection with scalable runtime.
Includes: CD with software, Communication cable, Country-specific detachable power cord, Documentation CD, Installation guide, Network management card, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card

  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Rack/Tower convertible
    Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Smart-UPS On-Line Features & Benefits

Marketing features

Save time with easy and convenient remote/network accessibility.
Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Low operating and maintenance costs with proven reliability and intelligent battery management .
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Avoids costly power problems by keeping your IT equipment and data protected and available .
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Manageability

Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
Serial connectivity
Provides management of the UPS via a serial port.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
LED status indicators
Quickly understand unit and power status with visual indicators.
SmartSlot
Customize UPS capabilities with management cards.

Serviceability

Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Audible alarms
Provides notification of changing utility power and UPS power conditions

Availability

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Scalable runtime
Allows additional run time to be quickly added as needed.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Product Description APC Smart-UPS SRT 1000VA RM - UPS - 1000 Watt - 1000 VA - with APC UPS Network Management Card AP9631
Device Type UPS - Power Factor Correction (PFC) - rack-mountable
Rack Size 2U
Weight 21 kg
Input Voltage AC 230 V
Output Voltage AC 220/230/240 V ? 2%
Power Capacity 1000 Watt / 1000 VA
Input Connectors 1 x power IEC 60320 C14, power BS 1363A, Europlug (power CEE 7/16)
Output connectors 6 x power IEC 60320 C13
Battery Lead Acid
Run Time (Up To) 8.5 min at full load
Networking Ethernet 10/100, RS-232, USB
Colour Black
Dimensions (WxDxH) 43.2 cm x 50.5 cm x 8.5 cm
Environmental Standards ENERGY STAR
Manufacturer Warranty 3-year warranty
Bundled with APC UPS Network Management Card AP9631
APC SMART-UPS (SRT), 1000VA, RM 230V, NC, 3YR WTY
