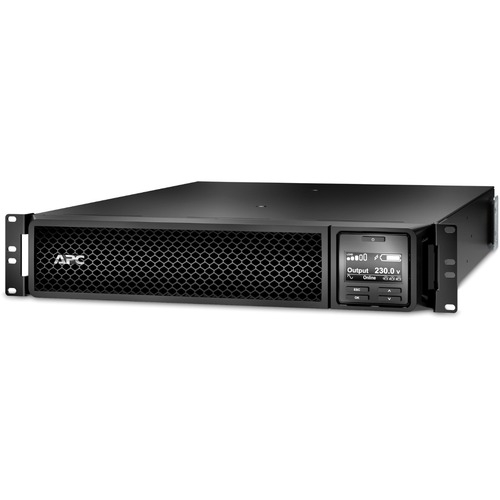

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 1 kVA/1 kW - 2U Tower/Rack Convertible - 3 Hour Recharge - 8.40 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 6 x IEC 60320 C13 SRT1000RMXLI-NC

SKU
390902
Brand
MPN
SRT1000RMXLI-NC
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$3,579.00
Buy Now And Earn 3579 Reward Points!

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 1 kVA/1 kW - 2U Tower/Rack Convertible - 3 Hour Recharge - 8.40 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 6 x IEC 60320 C13

Smart-UPS On-Line

High density, double-conversion on-line power protection with scalable runtime

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.


Guides & Documents
  •
    Brochure
    •
    •
Controls/Indicators
Status Indicators
    • LCD Graphics Screen
    • Audible Alarm
Miscellaneous
Software Included APC PowerChute Network Shutdown Software
Environmentally Friendly Yes
Interfaces/Ports
Network (RJ-45) Yes
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
General Information
Product Type Double Conversion Online UPS
Manufacturer Website Address http://www.schneider-electric.com.au
Manufacturer Schneider Electric SA
Product Name Smart-UPS 1KVA Tower/Rack Convertible UPS
Product Line Smart-UPS
Brand Name APC by Schneider Electric
Physical Characteristics
Weight (Approximate) 21 kg
Form Factor Tower/Rack Convertible
Rack Height 2U
Height 85 mm
Width 432 mm
Depth 505 mm
Battery Information
Battery Chemistry Lead Acid
Hot Swappable Yes
Battery Size 48V
Number of Batteries 1
Backup/Run Time (Half Load) 21.10 Minute
Backup/Run Time (Full Load) 8.40 Minute
Battery Characteristics Maintenance-free, Sealed, Leak-proof
Replaceable Battery Yes
DC System Voltage 48 V DC
Typical Battery Recharge Time 3 Hour
Environmental Conditions
Thermal Dissipation 317 BTU/h
Maximum Operating Temperature 40°C
Maximum Operating Elevation 3 km
Maximum Storage Elevation 15 km
Operating Humidity 0% - 95%
Storage Relative Humidity 0% - 95%
Storage Temperature -20°C - 50°C
Sound Emission (A-Weighted) 50 dB(A)
Power Description
Input Voltage 230 V AC
Output Voltage 230 V AC
220 V AC
240 V AC
Load Capacity 1 kVA/1 kW
Surge Energy Rating 432 J
Waveform Type Pure Sine Wave
Output Frequency 60 Hz
Input Frequency 70 Hz
Technical Information
Application/Usage Network
Industry
Server
Computer
IT Equipment
Overload Protection Yes
Plug/Connector Type British BS1363A
SCHUKO CEE 7 EU1-16P
IEC 60320 C14
Receptacle Type IEC 60320 C13
Receptacle Detail 6 x IEC 60320 C13
