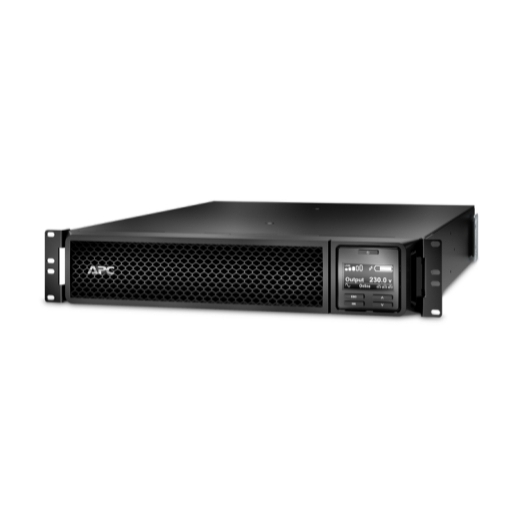

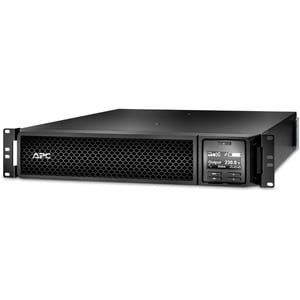

Apc - Schneider Smart-UPS SRT 1500VA RM 230V SRT1500RMXLI

SKU
367304
Brand
Apc - Schneider
Manufacturer Link
MPN
SRT1500RMXLI
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$3,237.00
Buy Now And Earn 3237 Reward Points!
Add to Compare

SRT1500RMXLI Features

Key Features


Run time for load
Min-max: 150-1500 W
W
5m 9s
Max. Capacity Used


100%
Output power capacity
1.5kWatts / 1.5kVA
Rack Height
2U
Output Connections
(6) IEC 60320 C13 (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60320 C14
Cord Length
1.8meters
APC Smart-UPS SRT 1500VA RM 230V
High density, double-conversion on-line power protection with scalable runtime.
Includes: CD with software, Communication cable, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, USB cable, Warranty card

  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Rack/Tower convertible
    Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Smart-UPS On-Line Features & Benefits

Protection

Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Cold-start capable
Provides temporary battery power when the utility power is out.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Serviceability

Disconnected battery notification
Warns when a battery is not available to provide backup power.
Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
BATTERY
Type Sealed Lead Acid
CONNECTION
Input Connection ,British BS1363A ,IEC-320 C14 ,Schuko CEE 7 / EU1-16P
SmartSlot Yes
Interface ,1 x RJ-45 Serial ,1 x SmartSlot ,1 x USB
DIMENSIONS
Depth (mm) 505.0
Height (mm) 85.0
Width (mm) 432.0
Weight (Kg) 21.0
POWER
Input Voltage 230 Volt
Output Power 1500 Watt
Output Voltage 230 Volt
Surge Energy Rating 432 Joules
Input Frequency 40 - 70 Hz
Output Frequency 50 - 60 Hz
Waveform Sinewave
PRODUCT
Brand Name APC
Manufacturer Web Site http://www.apc.com
Product Line Smart-UPS
Product Type Uninterruptible Power Supply
OTHER FEATURES
Colour Black
Cord Length 1.83 meter
Other Features * Load Crest Factor: 3 : 1 * Emergency Power Off (EPO) * Topology: Double Conversion Online * Built-in Bypass
Rack Height 2 U
Control Panel * Multi-function LCD status and control console
Audible Alarm * Audible and visible alarms prioritized by severity
Operating Temperature 0 - 40 °C
Environmental Compliance * RoHS
