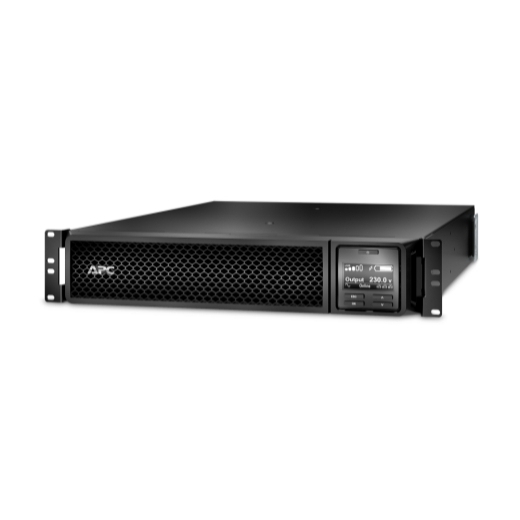

APC Smart-UPS SRT 3000VA RM 230V Network Card SRT3000RMXLI-NC

SKU
305466
Brand
Apc
Manufacturer Link
MPN
SRT3000RMXLI-NC
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Freight Estimate
$6,738.00
Buy Now And Earn 6738 Reward Points!
Add to Compare

Key Features


Run time for loadW
3m 58s
Max. Capacity Used


100%
Output power capacity
2.7kWatts / 3.0kVA
Rack Height
2U
Output Connections
(8) IEC 60320 C13 (Battery Backup)
(2) IEC 60320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
Cord Length
2.4meters
APC Smart-UPS SRT 3000VA RM 230V Network Card
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Documentation CD, Installation guide, Network management card, Rack mounting brackets, Rack mounting support rails, USB cable, Warranty card
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Rack/Tower convertible
    Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Smart-UPS On-Line Features & Benefits

Adaptability

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.

Availability

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Scalable runtime
Allows additional run time to be quickly added as needed.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
BATTERY
Type Sealed Lead Acid
DIMENSIONS
Depth (mm) 635.0
Height (mm) 85.0
Width (mm) 432.0
Weight (Kg) 31.3
PRODUCT
Brand Name APC
Manufacturer Web Site http://www.apc.com
Product Line Smart-UPS On-Line
Product Type Uninterruptible Power Supply
POWER
Input Voltage 230 Volt
Output Power 2700 Watt
Output Voltage 230 Volt
Power Rating 30000 VA
Surge Energy Rating 340 Joules
Input Frequency 40 - 70 Hz
Waveform Sinewave



CONNECTION
Input Connection British BS1363A ,IEC-320 C20 ,Schuko CEE 7 / EU1-16P
Output Connection 2 x IEC 320 C19 ,2 x IEC Jumpers ,8 x IEC 320 C13
SmartSlot Yes
SmartSlot Card Installed AP9631
Interface 1 x RJ-45 10/100 Base-T ,1 x RJ-45 Serial ,1 x USB
OTHER FEATURES
Colour Black
Cord Length 2.44 meter
Other Features * Ensures clean, uninterrupted power to protected equipment when generator power is used. * Protects connected loads from surges, spikes, lightning, and other power disturbances.
Rack Height 2 U
Control Panel * Multi-function LCD status and control console
Audible Alarm * Audible and visible alarms prioritized by severity
Operating Temperature 0 - 40 ��C
Environmental Compliance * RoHS
