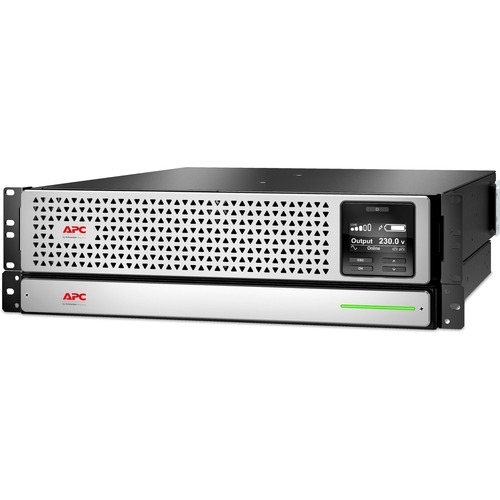

APC Smart-UPS On-Line, 3kVA, Lithium-ion, Rackmount 3U, 230V, 6x C13+2x C19 IEC outlets, Network Card, Extended runtime, with rail kit SRTL3000RMXLI-NC
APC Smart-UPS On-Line, 3kVA, Lithium-ion, Rackmount 3U, 230V, 6x C13+2x C19 IEC outlets, Network Card, Extended runtime, with rail kit
Smart-UPS On-Line
High density, double-conversion on-line power protection with scalable runtime
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
-
Brochure
-
Manual
Status Indicators |
|
Network Management | SNMP Manageable |
Software Included | Powerchute Software |
Environmentally Friendly | Yes |
Network (RJ-45) | Yes |
EPO Port | Yes |
USB (HID Compliant) Port | Yes |
Battery Chemistry | Lithium Ion (Li-Ion) |
Hot Swappable | Yes |
Number of Batteries | 1 |
Replaceable Battery | Yes |
Product Type | Double Conversion Online UPS |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Manufacturer | Schneider Electric SA |
Product Name | Smart-UPS SRT Li-Ion 3000VA RM 230V Network Card |
Product Line | Smart-UPS SRT |
Brand Name | APC by Schneider Electric |
Thermal Dissipation | 317 BTU/h |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3 km |
Maximum Storage Elevation | 15 km |
Operating Humidity | 0% - 95% |
Storage Relative Humidity | 0% - 95% |
Storage Temperature | -20°C - 50°C |
Sound Emission (A-Weighted) | 50 dB(A) |
Weight (Approximate) | 22 kg |
Form Factor | Tower/Rack Convertible |
Rack Height | 3U |
Height | 432 mm |
Width | 85 mm |
Depth | 508 mm |
Input Voltage | 230 V AC |
Output Voltage | 240 V AC |
220 V AC | |
230 V AC | |
Load Capacity | 3 kVA/2.70 kW |
Surge Energy Rating | 432 J |
Waveform Type | Pure Sine Wave |
Output Frequency | 60 Hz |
Input Frequency | 70 Hz |
Application/Usage | Medical |
Lab Equipment | |
Industry | |
Voice/Data Network | |
Server | |
Receptacle Type | IEC 60320 C13 |
IEC 60320 C19 | |
Receptacle Detail | 6 x IEC 60320 C13 |
2 x IEC 60320 C19 |
