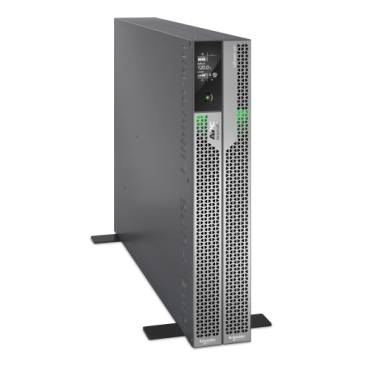

APC (SRTL3KRM1UIC) SMART-UPS ULTRA LITHIUM ION, 3KVA, 1U, 230V, SMARTCONNECT, 5YR WTY SRTL3KRM1UIC
SKU
401295
Brand
MPN
SRTL3KRM1UIC
Warranty
Standard Manufacturer's Warranty
$8,602.00
Buy Now And Earn 8602 Reward Points!
3kVA/3KW double-conversion on-line pure sine wave 1U rackmount UPS
notification_ok
Add up to 5 external battery packs (SRTL50RMBP1U-Li) for extended runtime
notification_ok
Rack/Tower convertible (rail kit included)
notification_ok
Cloud-based remote power monitoring via SmartConnect Ethernet Port
notification_ok
Graceful shutdown of physical servers, virtual machines and HCI Clusters
| Presentation | Ultra high density on-line power protection with scalable runtime supported by Lithium-Ion batteries. |
|---|---|
| Lead time | Usually in Stock |
|
Run time for load
Winformation_stroke
Min-max: 300-3000 W
|
4min 37s
|
|---|---|
|
Max. Capacity Used
information_stroke
|
100 %
|
| Main Input Voltage | 230 V |
| Other Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 230 V |
| rated power in W | 3000 W |
| Rated power in VA | 3000 VA |
| Input Connection Type | BS1363A British IEC 60320 C20 Schuko CEE 7 / EU1-16P |
| output connection type | 3 IEC 320 C13 2 IEC 320 C19 |
| Number of rack unit | 1U |
| Cable length | 2.44 m |
| Number of cables | 1 |
| Battery type | Li-Ion (Lithium-Ion) |
| Provided equipment | RJ45 cable USB cable Safety guide Rack mounting brackets Stabilization feet Screws |
| Run Time | View Runtime Graph
action_new_window
|
|---|---|
| Efficiency | View Efficiency Graph
action_new_window
|
| Battery recharge time | 1.5 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | 50 V |
| Battery charger power | 448 W |
| Battery design life | 8…10 year(s) |
| Battery power in VAH | 336 VAh runtime |
| Battery option | SRTL50RMBP1U-LI 1 1240 VAh SRTL50RMBP1U-LI 2 2471 VAh SRTL50RMBP1U-LI 3 3706 VAh SRTL50RMBP1U-LI 4 4944 VAh SRTL50RMBP1U-LI 5 6192 VAh |
| Extended runtime | 1 |
| product web sub-family | High density |
|---|---|
| Redundant | No |
| Colour | Silver grey |
|---|---|
| Height | 43 mm |
| Width | 432 mm |
| Depth | 560 mm |
| Product weight | 15.9 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit Tower-mounted with kit |
| Two post mountable | 1 |
| USB compatible | Yes |
| Mounting position | Horizontal Vertical |
| Network frequency | 50/60 Hz auto-sensing |
|---|---|
| Input voltage limits | 160...275 V adjustable (half load) |
| Input Power Factor at Full Load | 1 |
| Maximum configurable power in W | 3000 W |
|---|---|
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Crest factor | 3 : 1 |
| UPS type | On-Line |
| Wave type | Sine wave |
| bypass type | Internal bypass (automatic and manual) |
| Maximum configurable power in VA | 3000 VA |
| Product certifications | CE UKCA |
|---|---|
| Marking | CE Mark UKCA |
| Standards | EN/IEC 62040-1 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 55 dB |
| IP degree of protection | IP20 |
| Free slots | 0 |
|---|---|
| Preinstalled device | Network management card with environmental monitoring |
| Control panel | Touch screen LCD user interface |
| Alarm | Audible and visible alarms : prioritized by severity |
| Emergency power off | Yes |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.8 cm |
| Package 1 Width | 56.4 cm |
| Package 1 Length | 76.4 cm |
| Package 1 Weight | 24.2 kg |
| Warranty | 5 years repair or replace |
|---|
