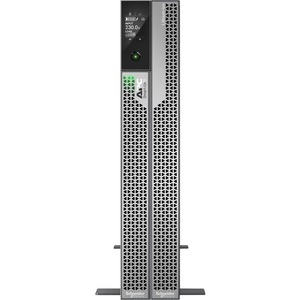

Smart-UPS Ultra On-Line Lithium Ion 5Kva/5Kw 2U Rack/Tower 230V SRTL5KRM2UI
SKU
410434
Brand
MPN
SRTL5KRM2UI
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$14,358.00
Buy Now And Earn 14358 Reward Points!
Smart-UPS Ultra On-Line Lithium ion 5KVA/5KW 2U Rack/Tower 230V
| Battery Life | 10 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Product Type | Double Conversion Online UPS |
| Input Voltage | 230 V AC |
| Form Factor | Rack/Tower |
| Waveform Type | Sine Wave |
| Rack Height | 2U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | Hard Wire 3-wire (1P+N+E) |
| Input Voltage Range | 180 V AC - 275 V AC |
| Receptacle Type | IEC 60320 C19, IEC 60320 C13 |
| Product Family | Smart-UPS SRT |
| Backup/Run Time (Half Load) | 11.37 Minute |
| Backup/Run Time (Full Load) | 5.28 Minute |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 5 kW |
| Product Color | Black |
| Receptacle Detail | 6 x IEC 60320 C13, 4 x IEC 60320 C19 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS) |
| Battery Energy | 2242.8 kJ |
| DC System Voltage | 180 V DC |
| Typical Battery Recharge Time | 1.50 Hour |
| Thermal Dissipation | 931 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3.05 km |
| Maximum Storage Elevation | 15.24 km |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Manufacturer Part Number | SRTL5KRM2UI |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 4 Pack |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS Ultra On-Line Lithium ion, 5KVA/5KW, 2U Rack/Tower, 230V |
| Product Line | Smart-UPS |
| Product Series | SRT |
| USB | No |
| EPO Port | Yes |
| Alarm | Yes |
| Package Contents | • Smart-UPS Ultra On-Line Lithium ion, 5KVA/5KW, 2U Rack/Tower, 230V • 1 x CD (Software and Documentation) |
| Environmentally Friendly | Yes |
| Weight (Approximate) | 29.20 kg |
| Height | 86 mm |
| Width | 432 mm |
| Depth | 701 mm |
| Color Family | Black |
| Output Voltage | 220 V AC, 240 V AC, 230 V AC, 208 V AC |
| Surge Energy Rating | 1260 J |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Shipping Dimensions | Height 40, Width 59, Length 98, Shipping Weight 38.5 KG |
Smart-UPS Ultra On-Line Lithium ion 5KVA/5KW 2U Rack/Tower 230V
