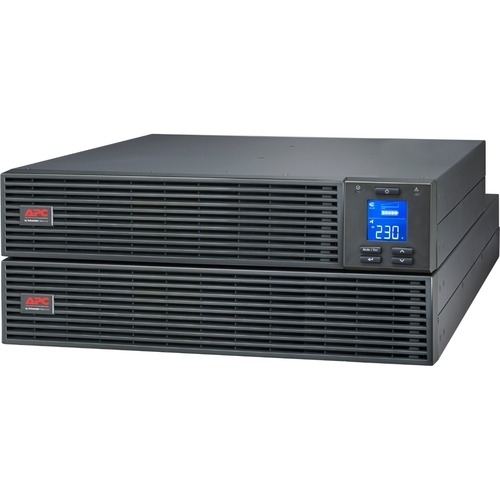

APC Easy UPS On-Line Srv 1000VA RM 230V With Extended Runtime Battery Pack Rail Kit SRV1KRILRK
SKU
400174
Brand
MPN
SRV1KRILRK
Warranty
Standard Manufacturer's Warranty
$1,206.00
Buy Now And Earn 1206 Reward Points!
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Product Type | Double Conversion Online UPS |
| Input Voltage | 230 V AC |
| Form Factor | Rack-mountable |
| Network Management | RS-232, Intelligent Card Slot |
| Waveform Type | Sine Wave |
| Rack Height | 4U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 60320 C14 |
| Input Voltage Range | 180 V AC - 285 V AC, 105 V AC - 300 V AC |
| Receptacle Type | IEC 60320 C13 |
| Product Family | Easy UPS On-Line |
| Backup/Run Time (Half Load) | 50 Minute |
| Backup/Run Time (Full Load) | 21.15 Minute |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| Product Color | Black |
| Receptacle Detail | 4 x IEC 60320 C13 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), China Restriction of Hazardous Substances (China RoHS) |
| DC System Voltage | 36 V DC |
| Typical Battery Recharge Time | 4.50 Hour |
| Display | LCD |
| Thermal Dissipation | 380 BTU/h |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 15 km |
| Sound Emission (A-Weighted) | 53 dB(A) |
| Manufacturer Part Number | SRV1KRILRK-E |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 3 / Pack |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy UPS On-Line 1000VA Rack-Mountable UPS |
| Product Line | Easy UPS On-Line |
| USB | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| Alarm | On Battery, Low Battery, Overload |
| Package Contents | • Easy UPS On-Line 1000VA Rack-Mountable UPS • 1 x IEC 60320 C13 to Schuko Power Cable • 1 x IEC 60320 C13 to C14 Power Cable • 1 x USB Cable • 1 x RS-232 Configuration Cable • 2 x Rack Mounting Brackets • 2 x Rack Mounting Support Rails • 1 x External Battery Pack • 1 x Battery Cable • User Manual |
| Certifications & Standards | • IP20 • CE • UKCA • TISI • EN/IEC 62040-1:2019/A11:2021 • EN/IEC 62040-2:2006/AC:2006 • EN/IEC 62040-2:2018 |
| Weight (Approximate) | 27.10 kg |
| Height | 172 mm |
| Width | 438 mm |
| Depth | 412 mm |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Circuit Breaker | Yes |
| Output Voltage | 220 V AC, 230 V AC, 240 V AC |
| Input Current | 10 A |
| Surge Energy Rating | 600 J |
| Output Frequency | 60 Hz, 50 Hz |
| Input Frequency | 70 Hz, 40 Hz |
| Additional Warranty Information | 2 years repair or replace |
| Shipping Dimensions | Height 34.5, Width 53, Length 55, Shipping Weight 25 KG |
APC Easy UPS On-Line SRV 1000VA RM 230V with Extended Runtime Battery Pack Rail Kit
