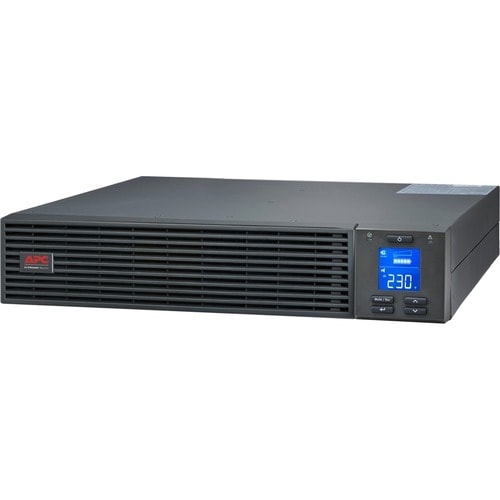

APC Easy UPS On-Line, 3kVA/2400W, Rackmount 2U, 230V, 6x Iec C13 + 1x Iec C19 Outlets, Intelligent Card Slot, Lcd, W/O Rail Kit SRV3KRI
SKU
424020
Brand
MPN
SRV3KRI
Warranty
Standard Manufacturer's Warranty
$1,939.00
Buy Now And Earn 1939 Reward Points!
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV202. The UPS is compatible with SRVRK1 rail kit sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
| Application/Usage | Business |
| Battery Chemistry | Lead Acid |
| Product Type | Double Conversion Online UPS |
| Input Voltage | 230 V AC |
| Form Factor | Rack-mountable |
| Waveform Type | Sine Wave |
| Rack Height | 2U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 60320 C14 |
| Input Voltage Range | 160 V AC - 280 V AC |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19, IEC 60320 C13 |
| Product Family | Easy UPS |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.40 kW |
| Replaceable Battery | Yes |
| Receptacle Detail | 1 x IEC 60320 C19, 6 x IEC 60320 C13 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 4 Hour |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 14.76 km |
| Manufacturer Part Number | SRV3KRI |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | SRV3KRI |
| Product Name | Easy UPS SRV RM 3000VA 230V |
| Product Line | Easy UPS |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Alarm | Overload, On Battery, Low Battery |
| Package Contents | • Easy UPS SRV RM 3000VA 230V • CD With Software • USB Cable • User Manual |
| Environmentally Friendly | Yes |
| Weight (Approximate) | 27.60 kg |
| Height | 86 mm |
| Width | 437 mm |
| Depth | 632 mm |
| Output Voltage | 220 V AC, 240 V AC, 230 V AC |
| Surge Energy Rating | 600 J |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Overload Protection | Yes |
| Transfer Time | 0 ns |
| Shipping Dimensions | Height 22.5, Width 57.6, Length 79, Shipping Weight 31.5 KG |
APC Easy UPS On-Line, 3kVA/2400W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, W/O rail kit
