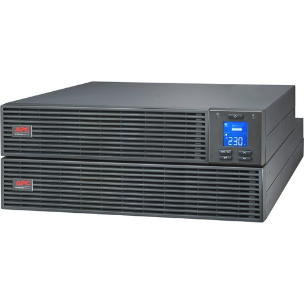

APC by Schneider Electric Easy UPS Double Conversion Online UPS - 3 kVA/2.40 kW - 4U Tower - 4 Hour Recharge - 12.70 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 6 x IEC 60320 C13, 1 x IEC 60320 C19 - Single Phase - Serial SRV

SKU
403774
Brand
MPN
SRV3KRILRK
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$2,519.00
Buy Now And Earn 2519 Reward Points!

APC by Schneider Electric Easy UPS Double Conversion Online UPS - 3 kVA/2.40 kW - 4U Tower - 4 Hour Recharge - 12.70 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 6 x IEC 60320 C13, 1 x IEC 60320 C19 - Single Phase - Serial Port

Easy UPS On-Line

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.

Guides & Documents
Controls/Indicators
Status Indicators

    LED Indicators:

    • Provide Easy-to-read Status Of The Unit
    • Utility Power Conditions

    LCD Graphics Display:

    • Text and Mimic Diagrams That Display Modes of Operation
    • System Parameters
    • Alarms

    Control Panel:

    • Multi-function LCD Status
    • Control Console
Interfaces/Ports
Serial PortYes
USB (HID Compliant) PortYes
Environmental Conditions
Maximum Operating Temperature40°C
Maximum Operating Elevation3 km
Maximum Storage Elevation14.76 km
Management
Network ManagementUSB
AlarmOverload
Low Battery
On Battery
Physical Characteristics
Weight (Approximate)52 kg
Form FactorTower
Rack Height4U
Height172 mm
Width437 mm
Depth632 mm
Technical Information
Application/UsageEquipment
Server
Business
Overload ProtectionYes
Plug/Connector TypeIEC 320-C14
PhaseSingle Phase
Receptacle TypeIEC 60320 C13
IEC 60320 C19
Transfer Time0 ns
Receptacle Detail6 x IEC 60320 C13
1 x IEC 60320 C19
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSRV3KRILRK
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameEasy UPS 3kVA Tower UPS
Product LineEasy UPS
Brand NameAPC by Schneider Electric
Battery Information
Battery ChemistryLead Acid
Battery Energy3380.4 kJ
Number of Batteries1
Backup/Run Time (Half Load)30.10 Minute
Backup/Run Time (Full Load)12.70 Minute
Battery CharacteristicsMaintenance-free, Sealed, Leak-proof
Replaceable BatteryYes
Typical Battery Recharge Time4 Hour
Power Description
Input Voltage230 V AC
Output Voltage220 V AC
240 V AC
230 V AC
Surge Energy Rating600 J
Waveform TypeSine Wave
Input Voltage Range160 V AC - 280 V AC
Output Frequency60 Hz
Input Frequency70 Hz
