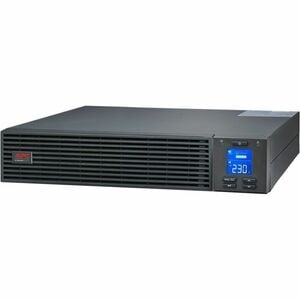

APC Easy UPS On-Line Srv RM 3000VA 2700W 230V With Rail Kit SRV3KRIRK-E
SKU
443547
Brand
MPN
SRV3KRIRK-E
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$1,909.00
Buy Now And Earn 1909 Reward Points!
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV202.
| Application/Usage | Business, IT, Network |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Product Type | Double Conversion Online UPS |
| Input Voltage | 120 V AC, 230 V AC |
| Form Factor | Rack-mountable |
| Network Management | RS-232, SmartSlot |
| Waveform Type | Sine Wave |
| Rack Height | 2U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 60320 C20 |
| Input Voltage Range | 110 V AC - 285 V AC |
| Cord Length | 1.50 m |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19, IEC 60320 C13 |
| Product Family | Easy UPS On-Line SRV |
| Backup/Run Time (Half Load) | 10.88 Minute |
| Backup/Run Time (Full Load) | 2.90 Minute |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Replaceable Battery | Yes |
| Product Color | Black |
| Receptacle Detail | 1 x IEC 60320 C19, 6 x IEC 60320 C13 |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| DC System Voltage | 72 V DC |
| Typical Battery Recharge Time | 4 Hour |
| Display | LCD |
| Thermal Dissipation | 1024 BTU/h |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 15 km |
| Sound Emission (A-Weighted) | 50 dB(A) |
| Manufacturer Part Number | SRV3KRIRKE |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy UPS On-Line SRV 3000VA Rack-mountable UPS |
| Product Line | Easy UPS On-Line |
| Product Series | SRV |
| USB | Yes |
| Serial Port | Yes |
| Alarm | On Battery, Low Battery, Overload |
| Package Contents | • Easy UPS On-Line SRV 3000VA Rack-mountable UPS • 1 x IEC 60320 C19 to Schuko Power Cable • 1 x IEC 60320 C13 to C14 Power Cable • 1 x USB Cable • 1 x RS-232 Configuration Cable • 1 x Rack Mounting Brackets • 1 x Rack Mounting Support Rails • User Manual |
| Certifications & Standards | • CE • UKCA • TIS • EN/IEC 62040-1:2019/A11:2021 • EN/IEC 62040-2:2006/AC:2006 • EN/IEC 62040-2:2018 |
| Environmentally Friendly | Yes |
| Weight (Approximate) | 28.50 kg |
| Height | 86 mm |
| Width | 438 mm |
| Depth | 632 mm |
| Color Family | Black |
| Output Voltage | 230 V AC, 220 V AC, 240 V AC |
| Surge Energy Rating | 945 J |
| Output Frequency | 60 Hz, 50 Hz |
| Input Frequency | 40 Hz, 70 Hz |
| Surge Suppression | Yes |
| Shipping Dimensions | Height 27.5, Width 58, Length 80, Shipping Weight 17.35 KG |
APC EASY UPS ON-LINE SRV RM 3000VA 2700W 230V WITH RAIL KIT
