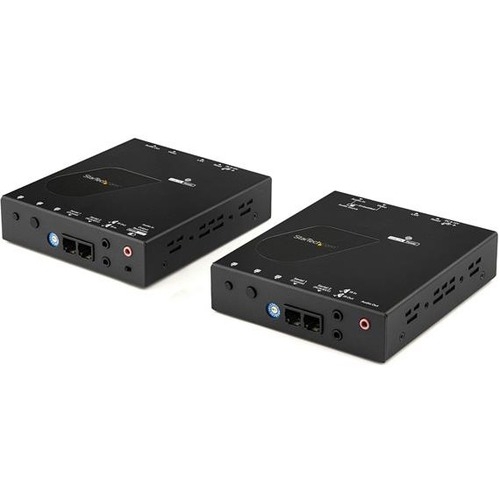

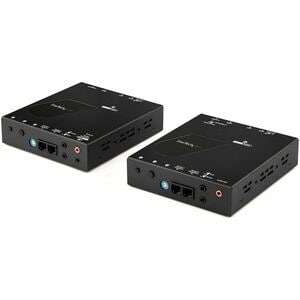

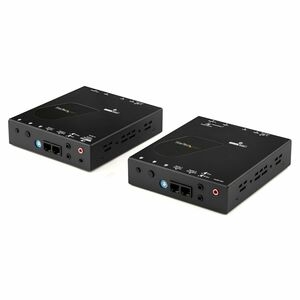

StarTech.com Video Extender Transmitter/Receiver - Wired - TAA Compliant - 1 Input Device - 1 Output Device - 100 m Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 1920 x 1080 Video Resolution - Full HD - Twisted Pair - Category 6 - Rack-mo ST1
StarTech.com Video Extender Transmitter/Receiver - Wired - TAA Compliant - 1 Input Device - 1 Output Device - 100 m Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 1920 x 1080 Video Resolution - Full HD - Twisted Pair - Category 6 - Rack-mountable
ThisHDMIover IP extenderkitdistributesvideoto a remote location,overyour local area network (LAN) andCat5orCat6Ethernetcabling.Bycombining this kit withadditional receivers(sold separately)and anEthernet switch (sold separately)you can distributeanHDMIsourceto multiplelocationsandcreatevideo wallsusingseveral remote displays and receivers in the same location.
You canalsouse multiple transmitters on the same networktodistributedifferent videosourcesorconnect the transmitterdirectlyto a receiveratup to 330 ft. (100 m), in a point-to-pointsetup.Remotecontrolofserial devicesis supportedthroughRS-232 extension.
Resolutionsupto 1080p,with Audio
With support forvideo resolutionsup to 1080p(1920x1080at60Hz),the transmitteralsosupports digital andanalog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile ControlThrough aFreeApp
The kit includesan easy-to-useonlineapp to manageyourIPvideodistribution.
Theappis available on iOS foraniPhone or iPad, Android forasmartphone or tablet, and Google Chrome browser foradesktop.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations
TheHDMI transmitter/receiver kitincludes optionalshelf-mountinghardware.ItusesCat5e orCat6cablesandworkswithexisting networkinfrastructures,eliminatingthe expenseof runningproprietarycables.
ST12MHDLAN2Kis backed by a StarTech.com 2-year warranty and freelifetime technical support.
Twisted Pair Cable Standard | Category 6 |
Media Type Supported | Twisted Pair |
Environmentally Friendly | Yes |
TAA Compliant | Yes |
Graphics Modes | Full HD |
Maximum Video Resolution | 1920 x 1080 |
Connectivity Technology | Wired |
Maximum Operating Distance | 100 m |
Number of Output Devices Supported | 1 |
Number of Input Devices Supported | 1 |
Number of Network (RJ-45) Ports | 2 |
Network (RJ-45) | Yes |
Serial Port | Yes |
Number of HDMI Inputs | 1 |
Number of HDMI Outputs | 1 |
HDMI In | Yes |
HDMI Out | Yes |
Product Type | Video Extender Transmitter/Receiver |
Manufacturer Part Number | ST12MHDLAN2K |
Manufacturer Website Address | http://www.startech.com/au |
Manufacturer | StarTech.com |
Product Name | HDMI over IP Extender Kit with Video Wall Support - 1080p |
Brand Name | StarTech.com |
Form Factor | Rack-mountable |
Transmitter Height | 30.48 mm |
Transmitter Width | 116.84 mm |
Transmitter Depth | 132.08 mm |
Receiver Height | 30.48 mm |
Receiver Width | 116.84 mm |
Receiver Depth | 132.08 mm |
Transmitter Weight (Approximate) | 73.7 g |
Receiver Weight (Approximate) | 73.7 g |
Product Color | Black |
