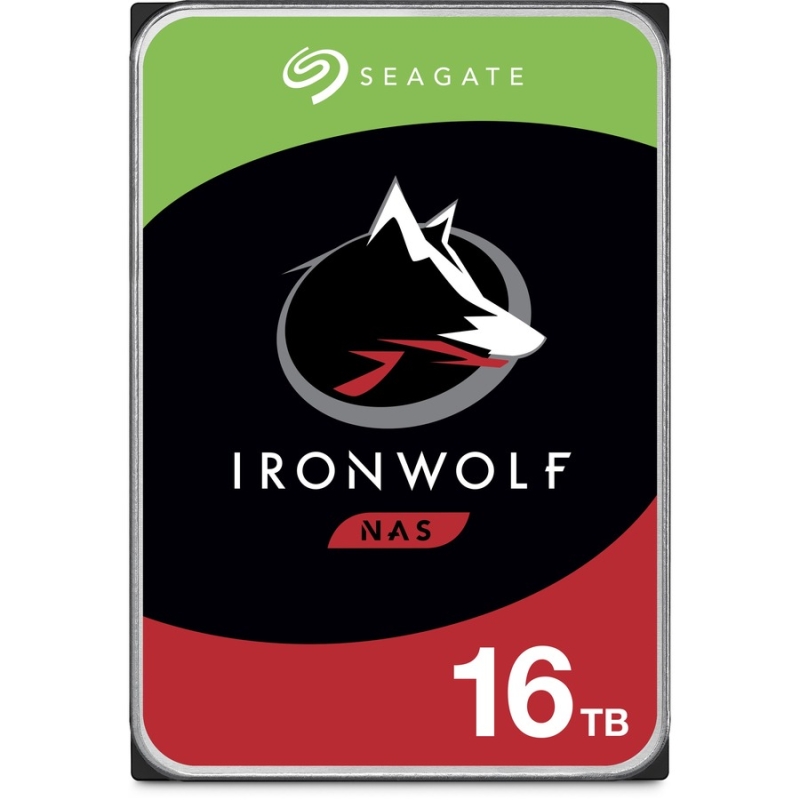

Seagate Ironwolf 16TB Nas Hdd 3.5IN Sata 6Gb/S 7200RPM 256M Cache ST16000VN001
SKU
415666
Brand
MPN
ST16000VN001
Warranty
Standard Manufacturer's Warranty
$1,252.00
Buy Now And Earn 1252 Reward Points!
SEAGATE IRONWOLF 16TB NAS HDD 3.5IN SATA 6GB/S 7200RPM 256M CACHE
| UPC | 763649124277 |
|---|---|
| MTBF | 1,000,000 hours |
| Brand | Seagate |
| Model | ST16000VN001 |
| Series | IronWolf |
| Weight | Grams: 670 Ounces: 23.63 Pounds: 1.48 |
| Capacity | 16 TB |
| Features | AgileArray (dual-plane balancing, RAID optimization) IronWolf Health Management (proactive prevention, intervention, recovery) Rotational Vibration (RV) sensors Optimized for multi-user NAS and 24x7 operation Error Recovery Control Halogen free |
| Warranty | 3-year limited warranty |
| Interface | SATA 6Gb/s (Serial ATA-600) |
| Packaging | Bare drive (single unit) |
| Cache (MB) | 256 |
| Dimensions | Length x Width x Height (mm): 146.99 x 101.85 x 26.11 Length x Width x Height (inches): 5.79 x 4.01 x 1.03 |
| Buffer Size | 256 MB |
| Description | Seagate IronWolf ST16000VN001 is a 16TB 3.5" internal NAS hard drive engineered for 24x7 multi-bay NAS environments. Built with AgileArray technology, RV sensors and IronWolf Health Management, it delivers RAID-optimized performance, reduced vibration, and proactive drive health monitoring. The drive uses CMR (Conventional Magnetic Recording), spins at 7200 RPM with a 256MB cache, supports sustained transfer rates up to ~180 MB/s and a workload rating of 180 TB/year. Designed for 1–8 bay NAS, small office/home office and server/storage systems, it offers 1,000,000 hours MTBF and comes with a three-year limited warranty; select listings include a three-year Seagate Rescue Data Recovery service. |
| Form Factor | 3.5 inch |
| Manufacturer | Seagate Technology |
| Product Line | IronWolf |
| Capacity (GB) | 16000 |
| Product Title | Seagate IronWolf 16TB NAS Internal Hard Drive (ST16000VN001) - 3.5" SATA 6Gb/s, 7200 RPM, 256MB Cache |
| Workload Rate | 180 TB/year |
| Physical Details | Width (maximum): 101.85 mm Height (maximum): 26.11 mm Length (maximum): 146.99 mm Form Factor (short): 3.5" |
| Country of Origin | Thailand |
| Power Consumption | Idle (W): 5.3 Sleep (W): 0.8 Average (W): 7.3 Standby (W): 0.8 |
| Shock (Operating) | 50 g (2 ms) |
| What's in the box | IronWolf 16TB SATA internal hard drive (bare drive) |
| Compatible Devices | NAS systems (1-8 bay) Desktop Server Storage systems Home media servers Personal cloud storage Small office / home office environments |
| Load/Unload Cycles | 600000 |
| Storage Temperature | Maximum (°F): 158 Minimum (°F): -40 |
| Recording Technology | Conventional Magnetic Recording (CMR) |
| Operating Temperature | Maximum (°F): 158 Minimum (°F): 41 |
| Shock (Non-operating) | 200 g (2 ms) |
| Rotational Speed (RPM) | 7200 |
| Additional Technical Notes | Supported Bays: 1-8 bays (multi-bay NAS compatible) Interface Ports: 1 x SATA 6 Gb/s Recording/Drive Type: Internal HDD (mechanical) Drive Heads / Platters: Heads: 18; Platters/Discs: 9 (per vendor spec listings) |
| Max Sustained Transfer Rate | up to ~180 MB/s |
| Rescue Data Recovery Service | 3-year Rescue Data Recovery (included on select listings) |
| Max Internal Data Transfer Rate | 210 MB/s (manufacturer spec listings) |
| Non-Recoverable Read Errors Rate | 1 per 10^15 |
