Startech 1 Ft/ 30cm Vga To 2x Vga Video Splitter Cable M/ F - Vga Y Cable Vgaspl1vv

SKU
188146
Brand
MPN
VGASPL1VV
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$22.00
Buy Now And Earn 22 Reward Points!

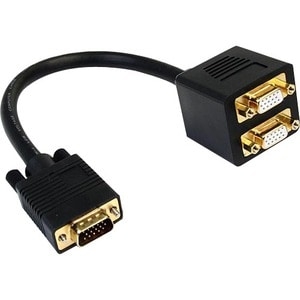

1 ft / 30cm VGA to 2x VGA Video Splitter Cable M/F - VGA Y Cable
by Startech
Category: Cables
Sub Category: A/V Cables & Adapters
Product Type: Video Cables & Adapters
This 1ft VGA video splitter cable lets you connect two VGA monitors/displays to a single VGA video source.A cost-effective solution for dual VGA display configurations, this high quality splitter cable is backed by StarTech.com''s Lifetime Warranty.
Brand Name: StarTech.com
Cable Length: 30.48 cm
Colour: Black
Connector on First End: 1 x DB-15 Male Video
Connector on Second End: 2 x DB-15 Female Video
Product Type: Video Cable

Physical Characteristics
Max Connector Dimension41 mm [1.6 in]
Product Length0.3 m [1 ft]
Product Weight145 g [5.1 oz]
Wire Gauge28 AWG
Special Notes / Requirements
NoteThis product will split your video signal to deliver two identical images of the same resolution. It cannot be used to span an image across two displays, or to show different images on each display.
What's in the Box
Included in Package1 ft VGA to 2x VGA Video Splitter Cable ? M/F
Physical Characteristics
ColorBlack
Cable OD9 mm [0.4 in]
Cable Length0.3 m [1 ft]
Performance
Maximum Digital Resolutions2048?1536 @ 85Hz
Packaging Information
Shipping (Package) Weight150 g [5.3 oz]
Hardware
Number of Conductors15
Fire RatingCMG Rated (General Purpose)
Connector PlatingGold
Cable Shield TypeAluminum-Mylar Foil with Braid
Cable Jacket TypePVC - Polyvinyl Chloride
Connector(s)
Connector BVGA (15 pin, High Density D-Sub) Female
Connector AVGA (15 pin, High Density D-Sub) Male

This VGASPL1VV 1-foot VGA video splitter cable lets you connect two VGA displays to a single VGA video source.

A cost-effective solution for dual VGA monitor configurations, this high-quality splitter cable is backed by StarTech.com's Lifetime Warranty.
