Startech 1 Port Ftdi Usb To Serial Rs232 Adapter Cable With Com Retention - Usb To Rs232 Serial
QUICK OVERVIEW
1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention - USB to
RS232 Serial Port Adapter
by Startech
Category: Cables
Sub Category: Computer Cables & Adapters
Product Type: Usb Cables & Adapters

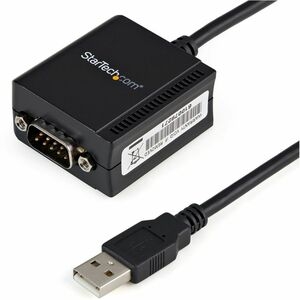

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and
COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9
port to connect, monitor and control your serial devices.This compact adapter
features COM retention, allowing the same COM port value to automatically be
re-assigned to the port if the cable is disconnected and re-connected to the
host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI
chipset which supports additional customization, advanced features, and
compatibility not necessarily offered by other solutions.Compatibility with a
broad list of Operating Systems including Windows, Windows CE, Mac OS and Linux,
makes this product easy to integrate into mixed environments.Backed by a
StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Cable Length: 1.83 m
Cable Type: Serial
Colour: Black
Connector on First End: 1 x DB-9 Male USB
Connector on Second End: 1 x Type A Male USB
Product Type: Data Transfer Cable
| Connector(s) | |
| Connector Type(s) | DB-9 (9 pin, D-Sub) Male |
| USB Type-A (4 pin) USB 2.0 Male | |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | FTDI - FT232RL |
| Interface | Serial |
| Port Style | Cable Adapters |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.5 lb] |
| Performance | |
| Data Bits | 7, 8 |
| FIFO | 256 Bytes |
| Max Baud Rate | 115.2 Kbps |
| MTBF | 836981.2 hours |
| Parity | None, Odd, Even, Mark, Space |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 2 |
| Physical Characteristics | |
| Cable Length | 1.8 m [6 ft] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 22 mm [0.9 in] |
| Product Length | 45 mm [1.8 in] |
| Product Weight | 200 g [7.1 oz] |
| Product Width | 41.5 mm [1.6 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 Linux 2.4.x to 4.11.x LTS Versions only |
| Special Notes / Requirements | |
| System and Cable Requirements | One available USB 1.1 (or better) port |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| USB to RS-232 Serial Adapter | |
The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.
This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
