Startech 1 Port Ftdi Usb To Serial Rs232 Adapter Cable With Optical Isolation Icusb2321fis
1 Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation
by Startech
Category: Cables
Sub Category: Computer Cables & Adapters
Product Type: Serial Cables & Adapters

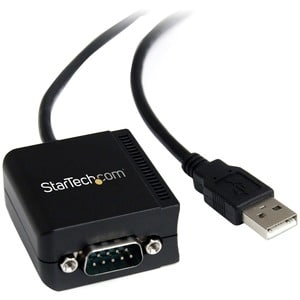

The ICUSB2321FIS 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical
Isolation converts an available USB 1.1 or 2.0 port into an RS232 DB9 port that
can be used to connect, monitor and control your serial devices.The USB to
serial adapter features integrated optical isolation circuits and surge
protection to protect your critical, sensitive control equipment against
electrical damage, making it a viable solution for costly industrial serial
devices.The versatile FTDI chipset also supports COM retention, additional
customization/features, and compatibility not offered by most other solutions.
Broad operating system compatibility including Windows, Windows CE, Mac OS and
Linux, makes this product easy to integrate into mixed environments.Backed by a
StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Cable Length: 1.83 m
Cable Type: Serial
Colour: Black
Connector on First End: 1 x DB-9 Male Serial
Connector on Second End: 1 x Type A Male USB
Product Type: Data Transfer Cable
| Connector(s) | |
| Connector Type(s) | DB-9 (9 pin, D-Sub) Male |
| USB Type-A (4 pin) USB 2.0 Male | |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | FTDI - FT232RL |
| Interface | Serial |
| Port Style | Cable Adapters |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.4 lb] |
| Performance | |
| Data Bits | 7, 8 |
| FIFO | 256 Bytes |
| Isolation | 2500 Vrms |
| Max Baud Rate | 921.6 Kbps |
| Maximum Cable Length | 2.5 m [8.3 ft] |
| Parity | None, Odd, Even, Mark,Space |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 2 |
| Supported Protocols | RS 232 |
| Surge Protection | 500W Bi-directional circuits |
| Physical Characteristics | |
| Cable Length | 2.5 m [8.3 ft] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 20 mm [0.8 in] |
| Product Length | 2.5 m [8.3 ft] |
| Product Weight | 86 g [3 oz] |
| Product Width | 40 mm [1.6 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows? CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 Linux 2.4.x to 4.11.x LTS Versions only |
| Special Notes / Requirements | |
| System and Cable Requirements | One available USB 1.1 (or better) port |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| USB to RS-232 Serial Adapter | |
The ICUSB2321FIS 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation converts an available USB 1.1 or 2.0 port into an RS232 DB9 port that can be used to connect, monitor and control your serial devices.
The USB to serial adapter features integrated optical isolation circuits and surge protection to protect your critical, sensitive control equipment against electrical damage, making it a viable solution for costly industrial serial devices.
The versatile FTDI chipset also supports COM retention, additional customization/features, and compatibility not offered by most other solutions. Broad operating system compatibility including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
