Startech 1 Port Low Profile Native Rs232 Pci Express Serial Card With 16550 Uart Pex1s553lp

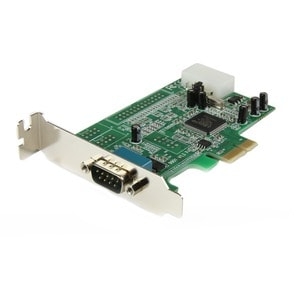

1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
by Startech
Category: Connectivity Devices
Sub Category: Serial/Parallel & I/O Cards
Product Type: Serial Cards
Add a RS-232 serial port to your standard or small form factor computer through
a PCI Express expansion slot. The PEX1S553LP PCI Express Serial Card turns a PCI
Express slot into an RS232 (DB9) serial connection.The card is constructed using
a native single chip design that lets you harness the full capability offered by
PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48%
over conventional bridge chip serial cards.The PCI Express RS232 Serial Adapter
Card is compatible with a broad range of operating systems, including Windows
2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11
and up, and ships with a low profile/half-height bracket installed, but includes
an optional full profile bracket that lets you add a serial port to virtually
any computer (regardless of the case form factor).This product is a replacement
for our PEX1S552LP card.Backed by a StarTech.com Lifetime warranty and free
lifetime technical support.
Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express
Number of Ports: 1
Product Type: Serial Adapter
| Connector(s) | |
| Connector Type(s) | PCI Express x1 Male |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| Internal Ports | LP4 (4 pin, Molex Large Drive Power) Male |
| Environmental | |
| Humidity | 5~85% RH |
| Operating Temperature | -10?C to 80?C (14?F to 176?F) |
| Storage Temperature | -20?C to 100?C (-4?F to 212?F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Low Profile (SP bracket incl.) |
| Chipset ID | ASIX - MCS9922CV-AA |
| Interface | Serial |
| Port Style | Integrated on Card |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.4 lb] |
| Performance | |
| FIFO | 128 Bytes |
| Max Baud Rate | 460.8 Kbps |
| Serial Protocol | RS-232 |
| Physical Characteristics | |
| Product Height | 20 mm [0.8 in] |
| Product Length | 105 mm [4.1 in] |
| Product Weight | 51.5 g [1.8 oz] |
| Product Width | 80 mm [3.1 in] |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows? DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS X? 10.4 to 10.10 Linux kernel 2.6.x to 4.11.x LTS Versions only |
| What's in the Box | |
| Included in Package | 1 Port PCI-Express Serial Card |
| Driver CD | |
| Full Profile Bracket | |
| Instruction Manual | |
The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX1S552LP card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
