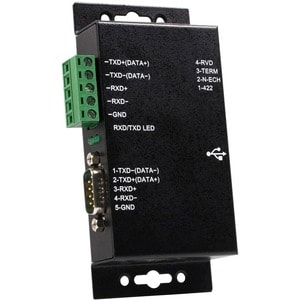

Startech 1 Port Metal Industrial Usb To Rs422/ Rs485 Serial Adapter W/ Isolation Icusb422is
Brand
StarTech
Model
ICUSB422IS
Connectors
Specifications
Color: Black
Connector Type: 1 - USB B Female
Connector Type: 1 - DB9 Male
General Specifications: Dip Switch Configuration
Baud Rate: 300 bps to 921.6 Kbps
Data Bits: 7,8
Isolation: 2500 Vrms
Surge Protection: 500 Watts
Power Requirements: 5V/200mA (USB Bus Powered)
OS Support: Windows 98SE, ME, 2000, XP, 2003, Vista
General
Changer Type
1 Port Metal Industrial USB to RS422/RS485 Serial Adapter
| Connector(s) | |
| Connector Type(s) | USB B (4 pin) Female |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| Terminal Block (5 Wire) | |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | FTDI - FT232RL |
| Interface | Serial |
| Port Style | External Hub |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.9 lb] |
| Performance | |
| Data Bits | 7, 8 |
| FIFO | 256 Bytes |
| Isolation | 2500 Vrms |
| Max Baud Rate | 921.6 Kbps |
| Parity | Even, Odd, Mark, Space, None |
| Serial Protocol | RS-422/485 |
| Stop Bits | 1, 2 |
| Surge Protection | 500W |
| Physical Characteristics | |
| Cable Length | 1.8 m [6 ft] |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 23 mm [0.9 in] |
| Product Length | 118 mm [4.6 in] |
| Product Weight | 180 g [6.4 oz] |
| Product Width | 64 mm [2.5 in] |
| Power | |
| Input Current | 200mA |
| Input Voltage | 5 DC |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 Linux 2.4.x to 4.11.x LTS Versions only |
| What's in the Box | |
| Included in Package | 6ft USB A to B Cable |
| Driver CD | |
| USB to RS422/485 Converter | |
| User Manual | |
The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.
The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.
The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
