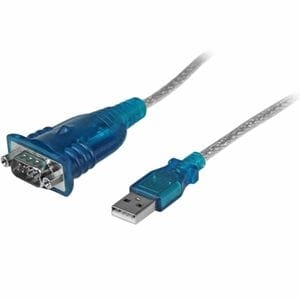

Startech 1 Port Usb To Rs232 Db9 Serial Adapter Cable - M/ M Icusb232v2
The ICUSB232V2 1 Port USB to Serial Adapter converts a USB port into an RS232
DB9 serial port to connect to, monitor, and control a serial device.
Supporting data transfer rates up to 921.6 Kbps, the USB to serial cable is a
convenient and cost-saving solution for providing serial connectivity to devices
such as point-of-sale terminals, serial modems, industrial equipment, and a wide
variety of other RS232 peripherals.
The USB to RS232 converter is easy to install and offers broad operating system
compatibility, including Windows® 8, Linux and Mac OS®, for easy integration
into mixed environments.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Install in almost any laptop or desktop computer through broad operating system
compatibility, including Windows® 8
Communicate efficiently with connected devices with high-speed 921Kbps support
Portable and lightweight, the USB-Powered design requires no additional power
adapter
Warranty 3 Years
Hardware
Bus Type USB 2.0
Chipset ID Prolific - PL2303-HXD
Industry Standards USB 1.1/2.0
RS232
Interface Serial
Port Style Cable Adapter
Ports 1
Performance
Data Bits 5, 6, 7, 8
FIFO 512 Bytes
Flow Control None, Xon/Xoff, RTS/CTS, DTR/DSR
Max Baud Rate 921.6 Kbps
Parity Odd, Even, Mark, Space, or None Parity Modes
Serial Protocol RS-232
Stop Bits 1, 1.5, 2
Connector(s)
Connector Type(s) 1 - DB-9 (9 pin; D-Sub) Male
1 - USB A (4 pin) Male
Software
Microsoft WHQL Certified Yes
OS Compatibility Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP
(32/64), 2000
Windows Server® 2012, 2008 R2, 2003
Mac OS® 10.x (Tested up to 10.10), 9.x, 8.x
Linux 2.4.31 and later
Special Notes / Requirements
System and Cable Requirements One available USB 1.1 (or above) port
Physical Characteristics
Enclosure Type Plastic
Product Height 0.8 in [20 mm]
Product Length 16.9 in [430 mm]
Product Weight 1.9 oz [52.5 g]
Product Width 1.4 in [35 mm]
Environmental
Humidity 0~65% RH
Operating Temperature 0?C to 60?C (32?F to 140?F)
Storage Temperature -20?C to 80?C (-4?F to 176?F)
Packaging Information
Shipping (Package) Weight 2.2 oz [62.5 g]
What's in the Box
Included in Package 1 - USB to RS232 Adapter
1 - Instruction Manual
| Connector(s) | |
| Connector Type(s) | DB-9 (9 pin, D-Sub) Male |
| USB Type-A (4 pin) USB 2.0 Male | |
| Environmental | |
| Humidity | 0~65% RH |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -20?C to 80?C (-4?F to 176?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | Prolific - PL2303RA |
| Industry Standards | USB 1.1/2.0 RS232 |
| Interface | Serial |
| Port Style | Cable Adapters |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 62.5 g [2.2 oz] |
| Performance | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 512 Bytes |
| Flow Control | None, Xon/Xoff, RTS/CTS, DTR/DSR |
| Max Baud Rate | 921.6 Kbps |
| MTBF | 30,000 Hours |
| Parity | Odd, Even, Mark, Space, or None Parity Modes |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 1.5, 2 |
| Physical Characteristics | |
| Enclosure Type | Plastic |
| Product Height | 20 mm [0.8 in] |
| Product Length | 430 mm [16.9 in] |
| Product Weight | 52.5 g [1.9 oz] |
| Product Width | 35 mm [1.4 in] |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows? 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 9.x, 8.x, 10.6 to 10.13 Linux 2.4.31 to 4.11.x LTS Versions Only |
| Special Notes / Requirements | |
| System and Cable Requirements | One available USB 1.1 (or above) port |
| What's in the Box | |
| Included in Package | Instruction Manual |
| USB to RS232 Adapter | |
The ICUSB232V2 1 Port USB to Serial Adapter converts a USB port into an RS232 DB9 serial port to connect to, monitor, and control a serial device.
Supporting data transfer rates up to 921.6 Kbps, the USB to serial cable is a convenient and cost-saving solution for providing serial connectivity to devices such as point-of-sale terminals, serial modems, industrial equipment, and a wide variety of other RS232 peripherals.
The USB to RS232 converter is easy to install and offers broad operating system compatibility, including Windows® 8, Linux and Mac OS®, for easy integration into mixed environments.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
