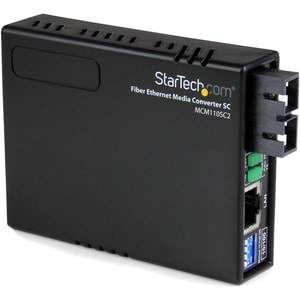

Startech 10/ 100 Fiber To Ethernet Media Converter Multi Mode Sc 2 Km Mcm110sc2
10/100 FIBER TO ETHERNET MEDIA CONVERTER MULTI MODE SC 2 KM
by Startech
Category: Networking
Sub Category: Transceivers & Converters
Product Type: Media Converters & Components
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates
an economical, cost-effective Ethernet-fiber link, transparently converting
to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals
to extend an Ethernet network connection over an SC terminated multimode fiber
backbone.The converter supports a maximum multimode fiber optic cable distance
of 2 kilometers (1.2 miles), providing a simple solution for connecting
10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated
multimode fiber, while delivering solid network performance and scalability.This
versatile GbE Ethernet to Fiber converter is compatible with most 3COM, Cisco,
Lucent and Nortel networks and fully complies with applicable IEEE 802.3
standards.Backed by a StarTech.com 2-year warranty and free lifetime technical
support.
Brand Name: StarTech.com
Form Factor: External
Network (RJ-45): Yes
Network Technology: 10/100Base-TX
Network Technology: 100Base-FX
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
Product Type: Transceiver/Media Converter
Total Number of Ports: 2
| Connector(s) | |
| Local Unit Connectors | RJ-45 Female |
| Remote Unit Connectors | Fiber Optic SC Duplex Female |
| Environmental | |
| Humidity | 10~90% RH |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| Industry Standards | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-FX | |
| IEEE 802.3u 100BASE-TX | |
| PoE | No |
| WDM | No |
| Indicators | |
| LED Indicators | Ethernet Link & Activity (ON - Ethernet Link OK, Blinking - Activity on Ethernet Link) |
| FEF [Far End Fault](On - Fault Detected, Off - No Fault | |
| Fiber Link & Activity (On - Fiber Link OK, Blinking - Activity on Fiber Link) | |
| Full ( Full duplex / Half duplex) | |
| Power | |
| Speed (Off - 10Mbps, On - 100 Mbps) | |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.9 lb] |
| Performance | |
| Fiber Operating Mode | Half/Full-Duplex |
| Fiber Type | Multi Mode |
| Max Transfer Distance | 2 km (1.2 mi) |
| Maximum Data Transfer Rate | 10/100Mbps |
| MTBF | 65,000 Hours |
| Wavelength | 1310nm |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 20 mm [0.8 in] |
| Product Length | 95 mm [3.7 in] |
| Product Weight | 90.5 g [3.2 oz] |
| Product Width | 75 mm [3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Voltage | 115V AC |
| Output Current | 0.2A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 2.4 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | Media Converter |
| Power Adapter | |
| User's Manual | |
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
