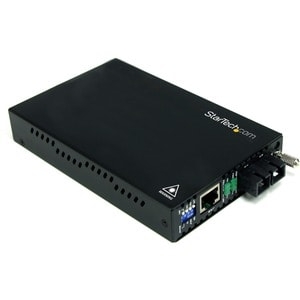

Startech 10/ 100 Mbps Multi Mode Fiber Media Converter Sc 2 Km Et90110sc2
10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
by Startech
Category: Networking
Sub Category: Transceivers & Converters
Product Type: Media Converters & Components
Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over
Multi Mode SC fiber. The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter
SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode
fiber, at distances up to 2 km (1.2 miles). A cost-effective solution for
connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network
segments over a 100Base-FX fiber backbone, the media converter is designed to
offer a durable and convenient Ethernet-to-fiber solution, featuring an
all-steel chassis, and a simple plug-and-play installation with minimal
configuration required. For added versatility, this fiber media converter
supports standalone operation, or installation into the 20 Slot, 2U Rackmount
Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime
technical support.
Brand Name: StarTech.com
DVI: No
Fiber Mode Supported: Multi-mode
Form Factor: Desktop
Form Factor: Rack-mountable
Maximum Distance Supported: 2 km
Media Type Supported: Optical Fiber
Media Type Supported: Twisted Pair
Network (RJ-45): Yes
Network Technology: 10/100Base-TX
Network Technology: 100Base-FX
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
Product Type: Transceiver/Media Converter
Total Number of Ports: 2
USB: No
| Performance | |
| Max Transfer Distance | 2 km (1.2 mi) |
| Fiber Type | Multi Mode |
| Fiber Operating Mode | Half/Full-Duplex |
| Auto MDIX | Yes |
| Packaging Information | |
| Shipping (Package) Weight | 0.9 kg [1.9 lb] |
| Hardware | |
| WDM | No |
| PoE | No |
| Industry Standards | IEEE802.3 (10BASE-T) IEEE802.3u (100BASE-TX) IEEE802.3u (100BASE-FX) |
| Environmental | |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Humidity | 10~90% RH |
| Connector(s) | |
| Local Unit Connectors | RJ-45 Female |
| Fiber Optic SC Duplex Female | |
| Performance | |
| Maximum Data Transfer Rate | 200 Mbps (Full Duplex Mode) |
| Power | |
| Plug Type | M |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | Fiber Media Converter |
| Grounding Screw | |
| Instruction Manual | |
| Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
| Performance | |
| Wavelength | 1310nm |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 24 mm [0.9 in] |
| Product Length | 153 mm [6 in] |
| Product Weight | 600 g [21.2 oz] |
| Product Width | 87 mm [3.4 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.48A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.6 A |
| Output Voltage | 12 DC |
The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
