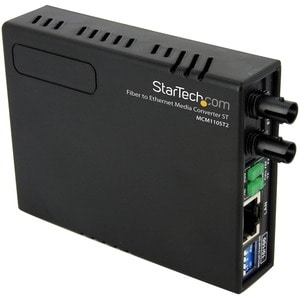

Startech 10/ 100 Multi Mode Fiber Copper Fast Ethernet Media Converter St 2 Km Mcm110st2
10/100 MULTI MODE FIBER COPPER FAST ETHERNET MEDIA CONVERTER ST 2 KM
by Startech
Category: Networking
Sub Category: Transceivers & Converters
Product Type: Media Converters & Components
This MM Fiber to Ethernet Media Converter creates a cost-effective Ethernet to
fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet
signals and 100Base-Fx optical signals to extend an Ethernet network connection
over a multimode fiber backbone. The converter supports a maximum multimode
fiber optic cable distance of 2km (1.2 miles), providing a simple solution for
connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using
ST-terminated multimode fiber, while delivering solid network performance and
scalability. Easy to setup and install, this compact, value-conscious media
converter features auto-switching MDI and MDI-X support on the RJ45 UTP
connections as well as manual controls for UTP mode, speed, Full and Half
Duplex, as well as LFP (Link Fault pass-through) on/off.
Brand Name: StarTech.com
Form Factor: External
Maximum Distance Supported: 2 km
Network (RJ-45): Yes
Network Technology: 10/100Base-TX
Network Technology: 100Base-FX
Number of Network (RJ-45) Ports: 1
Number of ST Ports: 1
Product Type: Transceiver/Media Converter
Total Number of Ports: 2
| Connector(s) | |
| Local Unit Connectors | Fiber Optic ST Duplex Female |
| RJ-45 Female | |
| Environmental | |
| Humidity | 10~90% RH |
| Operating Temperature | 0?C to 50?C (32°F to 122?F) |
| Storage Temperature | -10?C to 70?C (14°F to 158?F) |
| Hardware | |
| Industry Standards | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-FX | |
| IEEE 802.3u 100BASE-TX | |
| PoE | No |
| WDM | No |
| Indicators | |
| LED Indicators | Ethernet Link & Activity (ON - Fiber Link ok, Blinking - Activity on Fiber Link) |
| FEF [Far End Fault](On - Fault Detected, Off - No Fault | |
| Fiber Link & Activity (On - Fiber Link ok, Blinking - Activity on Fiber Link) | |
| Full ( Full duplex / Half duplex) | |
| Power | |
| Speed (10 or 100 Mbps) | |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.9 lb] |
| Performance | |
| Fiber Operating Mode | Half/Full-Duplex |
| Fiber Type | Multi Mode |
| Max Transfer Distance | 2 km (1.2 mi) |
| Maximum Data Transfer Rate | 10/100Mbps |
| MTBF | 65,000 Hours |
| Optical Power | -14 ~ -20 dBm |
| Power Budget | 11 dB |
| Sensitivity | -31 dBm |
| Wavelength | 1310nm |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 20 mm [0.8 in] |
| Product Length | 95 mm [3.7 in] |
| Product Weight | 90.5 g [3.2 oz] |
| Product Width | 75 mm [3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Voltage | 115V AC |
| Output Current | 0.2A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 2.4 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | Instruction Manual |
| Media Converter | |
| Power Adapter | |
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
