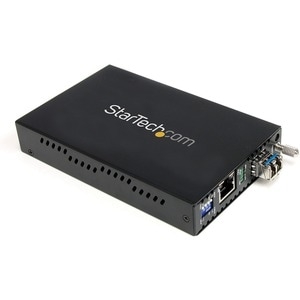

Startech 1000 Mbps Gigabit Single Mode Fiber Media Converter Lc 40 Km Et1000s40lc2
1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km
by Startech
Category: Computers
Sub Category: Notebook/Tablet Accessories
Product Type: Notebook Docks & Stands
Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over
Single Mode LC fiber. The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media
Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over
single-mode fiber, at distances up to 40km (25 miles). A cost-effective solution
for connecting a Gigabit Ethernet (1000Base-T) network to remote network
segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter
supports full Gigabit speeds for ideal network performance and scalability.
Designed to offer a durable and convenient Ethernet to fiber solution, the
Ethernet to LC Fiber converter features an all-steel chassis, and a simple
plug-and-play installation with minimal configuration required. For added
versatility, this fiber media converter supports standalone operation, or
installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a
StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
DVI: No
Fiber Mode Supported: Single-mode
Form Factor: Desktop
Form Factor: Rack-mountable
Maximum Distance Supported: 40 km
Media Type Supported: Optical Fiber
Media Type Supported: Twisted Pair
Network (RJ-45): Yes
Network Technology: 1000Base-SX/LX
Network Technology: 1000Base-T
Number of LC Ports: 1
Number of Network (RJ-45) Ports: 1
Product Type: Transceiver/Media Converter
Total Number of Ports: 2
USB: No
Performance | |
Jumbo Frame Support | 9K max. |
Max Transfer Distance | 40 km (24.8 mi) |
Maximum Data Transfer Rate | 2000 Mbps (full duplex mode) |
MTBF | 65,000 Hours |
Wavelength | 1310nm |
Physical Characteristics | |
Color | Black |
Product Height | 24 mm [0.9 in] |
Product Length | 155 mm [6.1 in] |
Product Weight | 416 g [14.7 oz] |
Product Width | 87 mm [3.4 in] |
Power | |
Center Tip Polarity | Positive |
Input Current | 0.36A |
Input Voltage | 115V-230V AC |
Output Current | 1.6 A |
Output Voltage | 12 DC |
Plug Type | M |
Power Consumption (In Watts) | 4 |
Power Source | AC Adapter Included |
What's in the Box | |
Included in Package | Fiber Media Converter |
Grounding Screw | |
Instruction Manual | |
Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
Performance | |
Fiber Type | Single Mode |
Fiber Operating Mode | Half/Full-Duplex |
Auto MDIX | Yes |
Packaging Information | |
Shipping (Package) Weight | 0.8 kg [1.8 lb] |
Hardware | |
WDM | No |
PoE | No |
Industry Standards | IEEE802.3ab (1000BASE-T) IEEE802.3z (1000BASE-SX/LX) |
Environmental | |
Storage Temperature | -10?C to 70?C (14?F to 158?F) |
Operating Temperature | 0?C to 60?C (32?F to 140?F) |
Humidity | 10~90% RH |
Connector(s) | |
Local Unit Connectors | RJ-45 Female |
Fiber Optic LC Duplex Female |
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
