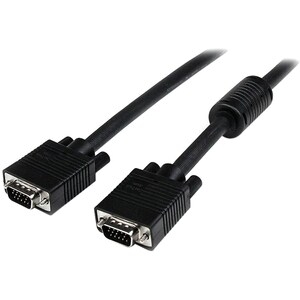

Startech 10m Coax High Resolution Monitor Vga Cable - Hd15 M/ M - 10m Hd15 To Hd15 Cable - 10m
QUICK OVERVIEW
Product Description
Connect your VGA monitor with the highest quality connection available. This 10m
high resolution VGA monitor cable is designed to provide the highest video
quality possible through VGA. Ideally suited for high resolution VGA
applications, this high quality male-to-male coaxial VGA cable eliminates the
picture "ghosting" and fuzzy images that are inherent to non-coaxial cables,
while providing superior EMI interference protection by using ferrite cores near
the connector ends.
Product Description StarTech.com Coax High Resolution VGA Monitor Cable - VGA
cable - 10 m
Type VGA cable
Technology Triple shielded twisted pair coaxial
Cable Features Moulded , nickel plated connectors
Length 10 m
Connector(s) 1 x 15 pin HD D-Sub (HD-15) - male
Connector(s) (Other Side) 1 x 15 pin HD D-Sub (HD-15) - male
Compliant Standards RoHS
Colour Black
Manufacturer Warranty Limited lifetime warranty
Extended Specification
GENERAL
American Wire Gauge (AWG) 28
Cable Features Moulded , nickel plated connectors
Colour Black
Length 10 m
Shielding Material Aluminum mylar foil with braid
Technology Triple shielded twisted pair coaxial
Type VGA cable
CONNECTIVITY
Connector(s) 1 x 15 pin HD D-Sub (HD-15) - male
Connector(s) (Other Side) 1 x 15 pin HD D-Sub (HD-15) - male
MANUFACTURER WARRANTY
Service & Support Limited lifetime warranty
MISCELLANEOUS
Compliant Standards RoHS
| Packaging Information | |
| Shipping (Package) Weight | 1 kg [2.2 lb] |
| Physical Characteristics | |
| Cable Length | 10 m [32.8 ft] |
| Color | Black |
| Product Length | 10 m [32.8 ft] |
| Product Weight | 987 g [34.8 oz] |
| Wire Gauge | 28 AWG |
| What's in the Box | |
| Included in Package | 10m Coax High Resolution Monitor VGA Cable - HD15 M/M |
| Nuts | |
| Packaging Information | |
| Package Quantity | 1 |
| Hardware | |
| Number of Ferrites | 1 |
| Number of Conductors | 14 |
| Fire Rating | CMG Rated (General Purpose) |
| Connector Plating | Nickel |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Environmental | |
| Storage Temperature | -20 to 80 ?C |
| Operating Temperature | 0 to 60 ?C |
| Humidity | 0 - 80 %RH |
| Connector(s) | |
| Connector B | VGA (15 pin, High Density D-Sub) Male |
| Connector A | VGA (15 pin, High Density D-Sub) Male |
The MXTMMHQ10M High Resolution VGA Cable (10-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
