Startech 12u 19in Wall Mount Side Mount Open Frame Rack Cabinet Rk1219sidem

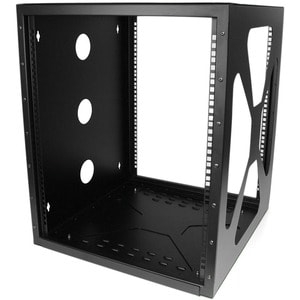

12U 19in Wall Mount Side Mount Open Frame Rack Cabinet
by Startech
Category: Power & Rack Equipment
Sub Category: Racks & Enclosures
Product Type: Rack Enclosures
Wall Mount your Server or Networking Equipment Sideways, for Easy Access
The RK1219SIDEM Wall Mount/Side Mount Deep Open Frame Rack/Cabinet (12U, 19in
Wide) lets you mount your servers, A/V or network equipment facing perpendicular
to the wall for easy access to mounted devices and equipment. The cabinet/rack
features open access to both the front and back of your devices, making it easy
to adjust cabling, view LEDs and access configuration buttons as needed; plus,
the nature of the sidemount configuration allows for deeper mounting depths than
typical wallmount racks.
Constructed of high-quality SPCC cold-rolled steel, for strength and durability,
the open frame equipment rack allows for maximum airflow while still supporting
a maximum weight capacity of 159 kg (350 lbs). The wall mount rack also ships
complete with all of the M5 screws and cage nuts required to mount your
equipment, saving the expense of purchasing them separately.
Backed by a StarTech.com Lifetime warranty.
Brand Name: StarTech.com
Colour: Black
Depth: 558 mm
Form Factor: Wall Mountable
Height: 655 mm
Material: Cold-rolled Steel (CRS) Frame
Product Type: Rack Cabinet
Rack Height: 12U
Rack Width: 482.60 mm
Weight (Approximate): 21.82 kg
Width: 537 mm
| Hardware | |
| Number and Type of Included Cage Nuts | M5 |
| Rack Type | 4-Post |
| Tools Included | No |
| U Height | 12U |
| U Markings | No |
| Wallmountable | Yes |
| Packaging Information | |
| Flat Pack (Assembly Required) | No |
| Shipping (Package) Weight | 22.6 kg [49.9 lb] |
| Performance | |
| Ventilation Capacity | Open Frame |
| Weight Capacity (Stationary) | 159 kg [351.4 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| External Depth | 566 mm [22.3 in] |
| External Height | 659 mm [25.9 in] |
| External Width | 538 mm [21.2 in] |
| Internal Width | 533 mm [21 in] |
| Minimum Mounting Depth | 529 mm [20.8 in] |
| Product Height | 659 mm [25.9 in] |
| Product Length | 566 mm [22.3 in] |
| Product Weight | 18.8 kg [41.5 lb] |
| Product Width | 538 mm [21.2 in] |
| Rail Thickness | 2 mm [0.1 in] |
| What's in the Box | |
| Included in Package | 12U Rack |
| M5 Cage Nuts | |
| M5 Screws | |
| Hardware | |
| Mounting Options | Front Mount (Front and Rear) |
| Mounting Holes | Square |
| Ladder Type | L-Shape |
| Ladder Offset | 18 mm [0.7 in] |
| Industry Standards | EIA-310-D |
| EIA RS310-D | |
| Front Door Construction | Open |
| Frame Type | Open Frame |
| Fan(s) | No |
| Casters | No |
| Cable Management | No |
| Adjustable Mounting Rails | No |
The RK1219SIDEM Wall Mount/Side Mount Deep Open Frame Rack/Cabinet (12U, 19in Wide) lets you mount your servers, A/V or network equipment facing perpendicular to the wall for easy access to mounted devices and equipment. The cabinet/rack features open access to both the front and back of your devices, making it easy to adjust cabling, view LEDs and access configuration buttons as needed; plus, the nature of the sidemount configuration allows for deeper mounting depths than typical wallmount racks. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Constructed of high-quality SPCC cold-rolled steel, for strength and durability, the open frame equipment rack allows for maximum airflow while still supporting a maximum weight capacity of 159 kg (350 lbs). The wall mount rack also ships complete with all of the M5 screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
Backed by a StarTech.com Lifetime warranty.
