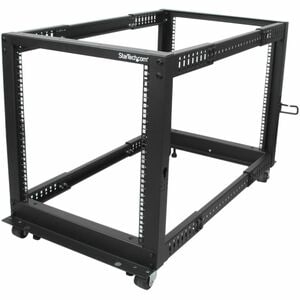

Startech 12u Adjustable Depth Open Frame 4 Post Server Rack Cabinet - Flat Pack W/ Casters/ Levelers
QUICK OVERVIEW
12U Adjustable Depth Open Frame 4 Post Server Rack Cabinet - Flat Pack w/
Casters / Levelers and Cable Management Hooks - 12U 4 Post Rack - Open Frame
Rack - 12U Server Rack
by Startech
Category: Power & Rack Equipment
Sub Category: Racks & Enclosures
Product Type: Open Frame Racks
Store your servers, network and telecommunications equipment in an adjustable
12U open-frame rack. The 4POSTRACK12U 12U Server Rack lets you store your
servers, network and telecommunications equipment in a sturdy, adjustable depth
open-frame rack.
Designed with ease of use in mind, this 12U rack offers easy-to-read markings
for both rack units (U) and depth, with a wide range of mounting depth
adjustments (22 - 40in) that make it easy to adapt the rack to fit your
equipment.
This durable 4-post rack supports a static loading capacity of up to 1200lbs
(544kg), and offers compliance with several industry rack standards (EIA/ECA-310,
IEC 60297, DIN 41494) for a universal design that's compatible with most rack
equipment.
For a complete server storage solution that saves you time and hassle, the rack
includes optional accessories such as casters, leveling feet and cable
management hooks. The base is also pre-drilled for securely fastening the rack
to the floor if needed, providing you with additional stability to better suit
your server environment.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Application/Usage: A/V Equipment
Application/Usage: LAN Switch
Application/Usage: Server
Assembly Required: Yes
Brand Name: StarTech.com
Colour: Black
Depth: 662.9 mm
Height: 711.2 mm
Material: Steel
Product Type: Rack Cabinet
Rack Depth: 1016 mm
Rack Height: 12U
Rack Width: 464.82 mm
Weight (Approximate): 17.06 kg
Width: 599.4 mm
| Hardware | |
| Ladder Type | L-Shape |
| Mounting Holes | Square |
| Number and Type of Included Cage Nuts | M6 |
| Rack Type | 4-Post |
| Tools Included | Yes |
| U Height | 12U |
| U Markings | Yes |
| Wallmountable | No |
| Packaging Information | |
| Flat Pack (Assembly Required) | Yes |
| Shipping (Package) Weight | 25.8 kg [57 lb] |
| Performance | |
| Weight Capacity (Stationary) | 544.3 kg [1202.9 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| External Depth | 590 mm [23.2 in] |
| External Height | 638 mm [25.1 in] |
| External Width | 600 mm [23.6 in] |
| Height with Casters | 710 mm [28 in] |
| Internal Height | 538 mm [21.2 in] |
| Maximum Mounting Depth | 1017 mm [40 in] |
| Minimum Mounting Depth | 560 mm [22 in] |
| Product Height | 638 mm [25.1 in] |
| Product Length | 590 mm [23.2 in] |
| Product Weight | 24.6 kg [54.3 lb] |
| Product Width | 600 mm [23.6 in] |
| Rail Thickness | 2 mm [0.1 in] |
| What's in the Box | |
| Included in Package | Base Bracket |
| Cable Management Hook | |
| Casters | |
| Center Section | |
| Corner Section | |
| Grounding Wires | |
| Hook Mounting Screw | |
| Left Vertical Rail | |
| Hardware | |
| Ladder Offset | 12 mm [0.5 in] |
| Industry Standards | IEC 60297-3-100 |
| EIA-310-D | |
| EIA/ECA-310-E | |
| DIN 41494 | |
| Front Door Key Lock | No |
| Front Door Construction | Open |
| Frame Type | Open Frame |
| Fan(s) | No |
| Casters | Included |
| Cable Management | Yes D-Rings |
| Adjustable Mounting Rails | Yes |
| What's in the Box | |
| Included in Package | Leveling Feet |
| M6 (10mm) Wrench | |
| M6 Cage Nut | |
| M6 Flange Nut | |
| M6 Flat Washer | |
| M6 Phillips Head Screw | |
| M6 Screw | |
| M8 (13mm) Wrench | |
| M8 Bolt | |
| M8 Washer | |
| Phillips Screwdriver | |
| PVC Cup Washer | |
| Right Vertical Rail | |
| Top Bracket | |
The 4POSTRACK12U 12U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.
Designed with ease of use in mind, this 12U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.
This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494) for a universal design that's compatible with most rack equipment.
For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
