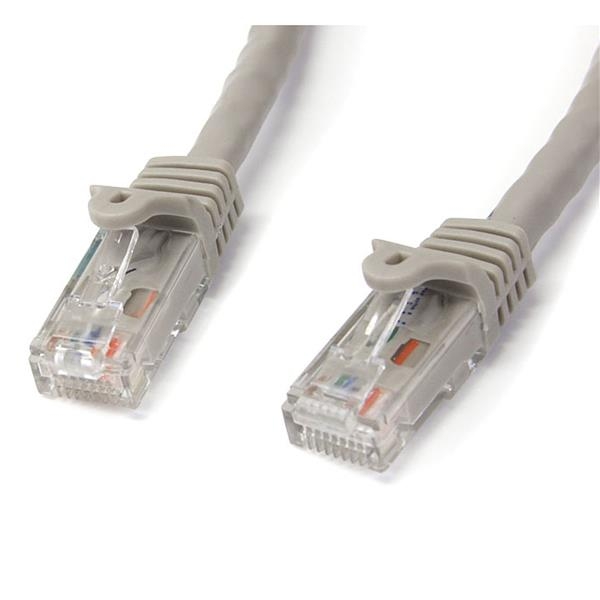

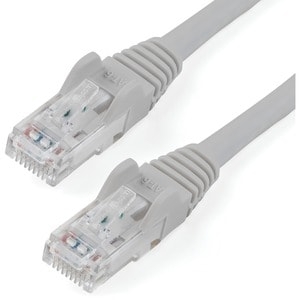

Startech 1m Gray Gigabit Snagless Rj45 Utp Cat6 Patch Cable - 1 M Patch Cord - Ethernet Patch Cable
QUICK OVERVIEW
New Make Power-over-Ethernet-capable Gigabit network connections
It's all about selection. Choose the colors you want, the lengths you want, the styles you want
Select from a wide variety of colors, lengths, and styles to complete your network solutions. That way, you can organize your cable runs and identify network connections faster, easily find the cables that best suit your network connection requirements, and pick the styles, either snagless - perfect for concealed cable runs - or molded - perfect for strengthening the connector to prevent damage.
100% copper for outstanding valueGet the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.24-gauge wire for high-performance network connectionsEnsure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.50-micron gold connectors provide peak conductivityRely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
Brand Name: StarTech.com
Cable Length: 1 m
Cable Type: Category 6
Colour: Grey
Connector on First End: 1 x RJ-45 Male Network
Connector on Second End: 1 x RJ-45 Male Network
Packaged Quantity: 1
Product Type: Network Cable
General Information
Brand Name: StarTech.com
Manufacturer Part Number: N6PATC1MGR
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information: New Make Power-over-Ethernet-capable Gigabit network connections
It's all about selection. Choose the colors you want, the lengths you want, the styles you want
Select from a wide variety of colors, lengths, and styles to complete your network solutions. That way, you can organize your cable runs and identify network connections faster, easily find the cables that best suit your network connection requirements, and pick the styles, either snagless - perfect for concealed cable runs - or molded - perfect for strengthening the connector to prevent damage.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.
24-gauge wire for high-performance network connections
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
Packaged Quantity: 1
Product Name: 1m Gray Snagless Cat6 UTP Patch Cable - ETL Verified
Product Type: Network Cable
Miscellaneous
Certifications & Standards:
TIA/EIA-568-B.1-2001 T568B
ETL Verified
Green Compliant: Yes
Physical Characteristics
Colour: Grey
Material: Polyvinyl Chloride (PVC) - Jacket
Weight (Approximate): 48.2 g
Technical Information
Cable Characteristic: Patch Cable
Cable Length: 1 m
Cable Type: Category 6
Conductor: Copper
Connector Plating: Gold Plated
Connector on First End: 1 x RJ-45 Male Network
Connector on Second End: 1 x RJ-45 Male Network
Device Supported: Network Device
Features: Snagless
Jacket Type: CMG
| Connector(s) | |
| Connector A | RJ-45 Male |
| Connector B | RJ-45 Male |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Type | Snagless |
| Connector Plating | Gold |
| Fire Rating | CMG Rated (General Purpose) |
| Number of Conductors | 4 pair UTP |
| Wiring Standard | TIA/EIA-568-B.1-2001 T568B |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 57 g [2 oz] |
| Performance | |
| Cable Rating | CAT6 - 650 MHz |
| Physical Characteristics | |
| Cable Length | 1 m [3.3 ft] |
| Color | Gray |
| Conductor Type | Stranded Copper |
| Product Length | 1 m [3.3 ft] |
| Product Weight | 47 g [1.7 oz] |
| Wire Gauge | 24 AWG |
| What's in the Box | |
| Included in Package | 1m Gray Snagless Cat6 UTP Patch Cable - ETL Verified |
The N6PATC1MGR Cat 6 Patch Cable (1m) meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable gray PVC jacket that enables you to color code your network cable runs as needed.
To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles, reducing the risk of cable failure.
Constructed of only top quality materials, this Cat 6 Patch Cord delivers reliable performance and is backed by our Lifetime Warranty.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
