Startech 1u 19in Steel Vertical Wall Mount Equipment Rack Bracket Rk119wallv
This 1U 19in Wall Mount Bracket offers a versatile storage solution, allowing equipment to be mounted vertically (flush with wall) to save space. Alternatively, the 1U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack. Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework. Constructed to EIA-310 19in rack standards.
Manufacturer: StarTech.com
Marketing Information:
This 1U 19in Wall Mount Bracket offers a versatile storage solution, allowing equipment to be mounted vertically (flush with wall) to save space. Alternatively, the 1U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack. Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework. Constructed to EIA-310 19in rack standards.
Packaged Quantity: 1
Product Model: RK119WALLV
Product Name: 1U 19in Steel Vertical Wall Mount Equipment Rack Bracket
Product Type: Mounting Bracket
Miscellaneous
Certifications & Standards:
CE
UL
Compatibility:
Network Device
Power Strip
Patch Panel
Green Compliance Certificate/Authority: RoHS
Green Compliant: Yes
Physical Characteristics
Colour: Black
Depth: 6 cm
Height: 15.1 cm
Weight (Approximate): 660.5 g
Width: 50.4 cm
Warranty
Limited Warranty: 2 Year
| Hardware | |
| Rack Type | 2-Post |
| Tools Included | No |
| U Height | 1U |
| U Markings | No |
| Wallmountable | Yes |
| Packaging Information | |
| Flat Pack (Assembly Required) | No |
| Shipping (Package) Weight | 0.9 kg [2 lb] |
| Performance | |
| Ventilation Capacity | Open Frame |
| Weight Capacity (Stationary) | 56.7 kg [125.3 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| External Depth | 150 mm [5.9 in] |
| External Height | 59 mm [2.3 in] |
| External Width | 503 mm [19.8 in] |
| Internal Width | 498 mm [19.6 in] |
| Product Height | 59 mm [2.3 in] |
| Product Length | 150 mm [5.9 in] |
| Product Weight | 660 g [23.3 oz] |
| Product Width | 503 mm [19.8 in] |
| Rail Thickness | 2 mm [0.1 in] |
| Special Notes / Requirements | |
| Note | Package includes 1 ?? screws for mounting to wood surfaces, additional hardware will be required for other materials |
| What's in the Box | |

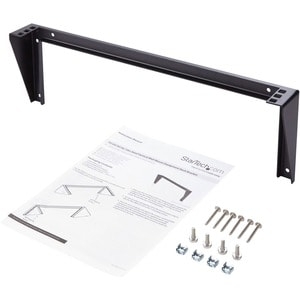

| Included in Package | Cage nuts and screws (4 Each) |
| Self Tapping Wood Screws - 3/16" x 1 1/2" | |
| Vertical Wall Mount Bracket | |
| Hardware | |
| Number and Type of Included Cage Nuts | M5 |
| Mounting Holes | Square |
| Ladder Type | L-Shape |
| Industry Standards | EIA-310-D |
| EIA RS310-C | |
| Front Door Construction | Open |
| Frame Type | Open Frame |
| Fan(s) | No |
| Casters | No |
| Cable Management | No |
| Adjustable Mounting Rails | No |
| Additional Required Tools | Phillips Screwdriver |
The RK119WALLV 1U 19in Steel Vertical Wall Mount Equipment Rack Bracket offers a versatile storage solution allowing rackmount equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with wall) to save space. Alternatively, the 1U bracket can be installed horizontally under a desk, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Perfect for SoHo (small office, home office) environments, the wallmount bracket features a sturdy steel design constructed to EIA-310 19in rack standards, and offers space-savings for environments lacking the footprint space for a full size server equipment rack. Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes are positioned at exactly 16in apart, matching standard construction framework.
Backed by a StarTech.com Lifetime Warranty.
Need more storage space? StarTech.com also offers a 2U 19in Wallmount Bracket, a 3U 19in Wallmount Bracket and a 4U 19in Wallmount Bracket.
