Startech 1u Adjustable Mounting Depth Vented Rack Mount Shelf - 175lbs/ 80kg Adjshelf
QUICK OVERVIEW

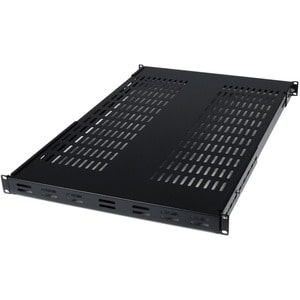

1U Adjustable Mounting Depth Vented Rack Mount Shelf - 175lbs / 80kg
by Startech
Category: Power & Rack Equipment
Sub Category: Racks & Enclosures
Product Type: Rack Enclosures
Add a sturdy, adjustable depth shelf into almost any server rack or cabinet.The
ADJSHELF Adjustable Depth Fixed Server Rack Cabinet Shelf offers a simple way to
effectively organize mission critical computer hardware in your server racks and
cabinets.Compatible with all 19in (wide) server racks/cabinets, the fixed rack
shelf can be adjusted from 19in to 38in (depth) as necessary. A sturdy
cold-rolled steel construction provides long term durability and enables a
weight capacity of up to 175 lbs (80 kg).Backed by a StarTech.com 2-year
warranty.
Brand Name: StarTech.com
Colour: Black
Height: 39.9 mm
Product Type: Rack Shelf
Rack Height: 1U
Rack Width: 482.60 mm
Weight (Approximate): 4.40 kg
Width: 445 mm
Physical Characteristics | |
Product Height | 40 mm [1.6 in] |
Product Length | 700 mm [27.6 in] |
Product Weight | 4400 g [155.3 oz] |
Product Width | 445 mm [17.5 in] |
Special Notes / Requirements | |
Note | Depth adjustable from 19-38" |
What's in the Box | |
Included in Package | front mounting brackets |
instruction manual | |
M5 cage nuts | |
M5 flanged lock nuts | |
M5 screws | |
M5 truss head screws | |
rear mounting brackets | |
slotted fixed shelf | |
Physical Characteristics | |
Minimum Mounting Depth | 495 mm [19.5 in] |
Maximum Mounting Depth | 974 mm [38.3 in] |
Internal Width | 446 mm [17.6 in] |
Internal Height | 40 mm [1.6 in] |
Internal Depth | 700 mm [27.6 in] |
External Width | 480 mm [18.9 in] |
External Height | 40 mm [1.6 in] |
Color | Black |
Performance | |
Weight Capacity (Stationary) | 80 kg [176.8 lb] |
Packaging Information | |
Shipping (Package) Weight | 5.4 kg [11.9 lb] |
Hardware | |
U Height | 1U |
Cable Management | No |
The ADJSHELF Adjustable Mounting Depth Rack Mount Shelf offers a simple way to effectively organize mission critical computer hardware in your server racks and cabinets.
Compatible with all 19in (wide) server racks/cabinets, the fixed rack shelf can be adjusted from 19in to 38in (mount depth) as necessary. A sturdy cold-rolled steel construction provides long term durability and enables a weight capacity of up to 175 lbs (80 kg).
Backed by a StarTech.com 2-year warranty.
