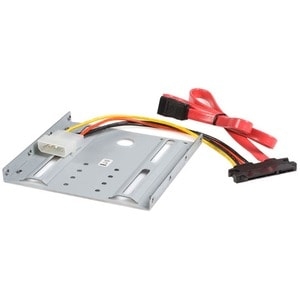

The BRACKET25SAT SATA hard drive mounting kit lets you install a 2.5in SATA hard drive (HDD) or solid state drive (SSD) into a 3.5in mounting bay -- enabling you to significantly increase the performance of your desktop by adding the speed of a 2.5in SSD.

For a hassle-free installation, the hard drive mounting kit includes the required SATA data and power cabling for your SATA drive. Plus, the bracket can support IDE drives when using our 2.5in to 3.5in IDE Hard Drive cable adapter (IDE4044).

The BRACKET25SAT features solid steel construction, and is backed by a StarTech.com lifetime warranty and free lifetime technical support

The StarTech.com Advantage
Improve the performance speed of your desktop computer by adding 2.5in solid state drives into a 3.5in mounting bay
Guaranteed reliability with solid aluminum construction and lifetime StarTech.com warranty
Warranty 2 Years
Hardware
Compatible Drive Types (Type and Rate) SATA
Drive Size 2.5in
Connector(s)
Drive Connectors 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors 1 - LP4 (4 pin; Molex Large Drive Power) Male
1 - SATA (7 pin; Data) Receptacle
Physical Characteristics
Enclosure Type Steel
Product Height 0.4 in [10 mm]
Product Length 3.9 in [100 mm]
Product Weight 3.9 oz [110 g]
Product Width 3.9 in [98 mm]
Packaging Information
Shipping (Package) Weight 0.3 lb [0.1 kg]
What's in the Box
Included in Package 1 - 3.5" Mounting Bracket
1 - Data/Power Adapter Cable
1 - Screw Kit
