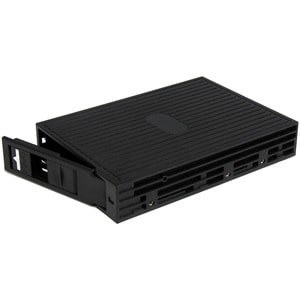

Startech 2.5in Sata/ Sas Ssd/ Hdd To 3.5in Sata Hard Drive Converter 25satsas35
2.5in SATA/SAS SSD/HDD to 3.5in SATA Hard Drive Converter
by Startech
Category: Storage
Sub Category: Drive Controllers
Product Type: Sata Drive Controllers
Turn Virtually any 2.5" SATA or SAS Hard Drive into a 3.5" SATA Drive. The
25SATSAS35 2.5-inch SATA/SAS to 3.5-inch SATA Hard Drive Converter converts a
2.5-inch SATA or SAS hard drive (HDD) or solid state drive (SSD) into a 3.5-inch
form factor SATA Hard Drive.
The converter provides a versatile solution for 2.5-inch drive installations,
enabling you to install a 2.5-inch SATA/SAS drive in a 3.5-inch bay, drive
drawer caddy/tray, or into a 3.5-inch drive enclosure.
To maximize performance and utilize the full speed potential of your SATA III
hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6
Gbps when paired with compatible controller.
Suitable for drives with a height of up to 15mm, virtually any 2.5-inch SATA or
SAS hard drive can be made to look and function like a 3.5-inch hard drive -
complete with standard mounting points along the sides and bottom (including 3
points along the sides for compatibility with some Dell systems).
The Drive Converter features a trayless design for simple drive installation and
removal, and is constructed of durable, yet lightweight plastics, with
ventilation openings to aid air flow and help keep hard drives running cooler.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Colour: Black
Compatible Drive Bay Width: 3.5"
Drive Interface: 6Gb/s SAS
Drive Interface: Serial ATA/600
Form Factor: Internal
Number of 1.8" Bays: No
Number of 2.5" Bays: 1
Number of 2.5"/3.5" Bays: No
Number of 3.5" Bays: No
Number of 5.25" Bays: No
Number of Total Expansion Bays: 1
Product Type: Drive Bay Adapter
| Performance | |
| Temperature Alarm | No |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Max Drive Height | 15 mm [0.6 in] |
| Product Height | 25 mm [1 in] |
| Product Length | 145 mm [5.7 in] |
| Product Weight | 140 g [4.9 oz] |
| Product Width | 100 mm [3.9 in] |
| Special Notes / Requirements | |
| Note | Although mobile racks can enable a Serial Attached SCSI (SAS) drive to connect using a standard Serial ATA (SATA) connector, the hard drive controller must be SAS compatible to properly support SAS drives. SAS controllers can work with SAS and SATA drives, but most SAS drives will only work with a SAS controller. |
| What's in the Box | |
| Included in Package | 2.5" to 3.5" HDD Converter |
| screws (6 round, 4 flat) | |
| Performance | |
| RAID | No |
| Packaging Information | |
| Shipping (Package) Weight | 199 g [7 oz] |
| Package Quantity | 1 |
| Hardware | |
| Number of Drives | 1 |
| Number of 2.5 inch bays | 1 |
| Front Door Key Lock | No |
| Fan(s) | No |
| Drive Size | 2.5in |
| Drive Installation | Removable |
| Compatible Drive Types | SAS & SATA |
| Connector(s) | |
| Host Connectors | SATA Data & Power Combo (7+15 pin) Plug |
| Drive Connectors | SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle |
The 25SATSAS35 2.5-inch SATA/SAS to 3.5-inch SATA Hard Drive Converter converts a 2.5-inch SATA or SAS hard drive (HDD) or solid state drive (SSD) into a 3.5-inch form factor SATA Hard Drive.
The converter provides a versatile solution for 2.5-inch drive installations, enabling you to install a 2.5-inch SATA/SAS drive in a 3.5-inch bay, drive drawer caddy/tray, or into a 3.5-inch drive enclosure.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller.
Suitable for drives with a height of up to 15mm, virtually any 2.5-inch SATA or SAS hard drive can be made to look and function like a 3.5-inch hard drive. The drive converter includes mounting holes along the side and base, allowing you to mount the drive if needed, into a compatible system.
The Drive Converter features a trayless design for simple drive installation and removal, and is constructed of durable, yet lightweight plastics, with ventilation openings to aid air flow and help keep hard drives running cooler.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
