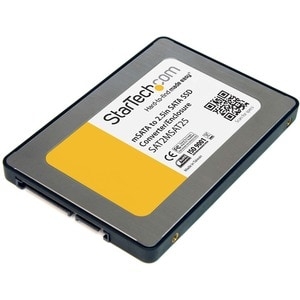

Startech 2.5in Sata To Mini Sata Ssd Adapter Enclosure - Mini Pcie Ssd Adapter - Sata To Msata
QUICK OVERVIEW
2.5in SATA to Mini SATA SSD Adapter Enclosure - Mini PCIe ssd Adapter - SATA
to mSATA - Mini PCIe SATA
by Startech
Category: Cables
Sub Category: Computer Cables & Adapters
Product Type: File Transfer Cables
Convert an mSATA mini-SSD into a Standard 2.5in SATA SSD
The SAT2MSAT25 2.5in SATA to Mini SATA SSD Adapter Enclosure turns an mSATA
(Mini SATA) mini-SSD into a standard 2.5in SATA SSD for use anywhere a 2.5in
SATA drive can be used.
Featuring all of the standard mounting points that a normal 2.5in hard drive
uses, the converter can be installed into External Hard Drive Enclosures, Hard
Drive Docking Stations or into desktop or laptop computers. The enclosure also
features a unique design that enables seamless data pass-through with no
conversion bottlenecks, enabling the mSATA drive to work as fast as it's allowed
by the host system/interface.
Constructed from aluminum and plastic, this converter is backed by a
StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Compatible Drive Bay Width: 2.5"
Drive Interface: mini-SATA
Form Factor: External
Host Interface: Serial ATA
Number of 2.5" Bays: 1
Number of Total Expansion Bays: 1
Product Type: Drive Enclosure
| Connector(s) | |
| Drive Connectors | mSATA (52 pin, Mini SATA) Slot Female |
| Host Connectors | SATA Data & Power Combo (7+15 pin) Plug |
| Environmental | |
| Humidity | 5% ~ 95% RH |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -10?C to 85?C (14?F to 185?F) |
| Hardware | |
| Compatible Drive Types | mSATA (Mini SATA) |
| Drive Installation | Fixed |
| Interface | SATA |
| Number of Drives | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 90 g [3.2 oz] |
| Physical Characteristics | |
| Color | Silver |
| Enclosure Type | Aluminum and Plastic |
| Product Height | 8.1 mm [0.3 in] |
| Product Length | 100 mm [3.9 in] |
| Product Weight | 50 g [1.8 oz] |
| Product Width | 70 mm [2.8 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Instruction Manual |
| Mounting Screws | |
| mSATA to 2.5in SATA converter | |
The SAT2MSAT25 2.5in SATA to Mini SATA SSD Adapter Enclosure turns an mSATA (Mini SATA) mini-SSD into a standard 2.5in SATA SSD for use anywhere a 2.5in SATA drive can be used.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller.
Featuring all of the standard mounting points that a normal 2.5in hard drive uses, the converter can be installed into External Hard Drive Enclosures, Hard Drive Docking Stations or into desktop or laptop computers. The enclosure also features a unique design that enables seamless data pass-through with no conversion bottlenecks, enabling the mSATA drive to work as fast as it's allowed by the host system/interface.
Constructed from aluminum and plastic, this converter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
