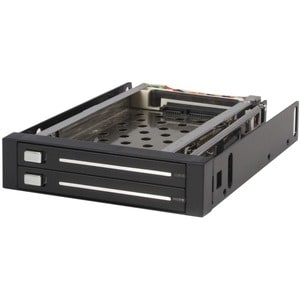

2 Drive 2.5in Trayless Sata Mobile Rack HSB220SAT25B
SKU
190292
Brand
MPN
HSB220SAT25B
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$100.00
Buy Now And Earn 100 Reward Points!
QUICK OVERVIEW
Enclosure for 3.5 HDD HSB220SAT25B
This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay. Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution. With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications. More from the Manufacturer More from the Manufacturer
| Host Interface | Serial ATA/600 |
| Product Type | Drive Enclosure |
| Form Factor | Internal |
| Controller Type | Serial ATA |
| Brand Name | StarTech.com |
| Wireless LAN | No |
| Compatible Drive Bay Width | 3.5" |
| Number of Total Expansion Bays | 2 |
| Number of 2.5" Bays | 2 |
| Drive Interface | SATA/600 |
| Product Color | Black |
| Color Family | Black |
| Manufacturer Part Number | HSB220SAT25B |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane |
| "Number of 2.5"" Bays" | 2 |
| Additional Information | • Quickly and easily install or remove HDD/SSD without having to open the chassis with the innovative trayless design • Aluminum construction and 50,000+ insertion rating ensures longevity from both the HDD/SSD and bay • Backed by a StarTech.com 2-year warranty and free lifetime technical support |
| Environmentally Friendly | Yes |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/hsb220sat25b_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/hsb220sat25b_rohs.pdf |
| End of Life Manual Availability | Yes |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/hsb220sat25b_weee.pdf |
| Weight (Approximate) | 286.3 g |
| Height | 22.9 mm |
| Width | 101.6 mm |
| Depth | 134.6 mm |
| Product Material | Aluminium |
| Number of Hard Drives Supported | 2 |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 2 |
| Number of Solid State Drive Installed | No |
| Shipping Dimensions | Height 2, Width 5, Length 7, Shipping Weight 0.48 KG |
2 Drive 2.5in Trayless SATA Mobile Rack
