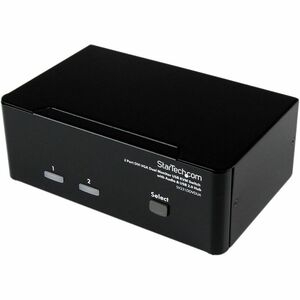

Startech 2 Port Dvi Vga Dual Monitor Kvm Switch Usb With Audio & Usb 2.0 Hub Sv231ddvdua
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact our technical support team for assistance identifying your source.Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Brand Name: StarTech.com
DVI: Yes
Number of Computers Supported: 2
Product Type: KVM Switchbox
USB: Yes
Manufacturer: StarTech.com
Marketing Information:
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact our technical support team for assistance identifying your source.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Product Model: SV231DDVDUA
Product Name: 2 Port DVI VGA Dual Monitor KVM Switch with Audio & USB Hub
Product Type: KVM Switchbox
Interfaces/Ports
DVI: Yes
Number of DVI Ports: 3
Number of USB Ports: 6
USB: Yes
Miscellaneous
Additional Information:
High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration.
Integrated USB 2.0 hub and Mic/Audio switching allows the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices.
Absolutely no software or drivers required providing a completely OS independent KVM solution.
Green Compliant: Yes
Physical Characteristics
Depth: 100 mm
Height: 57 mm
Weight (Approximate): 750 g
Width: 160 mm
Power Description
Input Voltage: 110 V AC
Technical Information
Number of Computers Supported: 2
Video
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1440
Connector(s) | |
Console Interface(s) | 3.5 mm Mini-Jack (3 Position) Female |
DVI-I (29 pin) Female | |
USB Type-A (4 pin) USB 2.0 Female | |
VGA (15 pin, High Density D-Sub) Female | |
Host Connectors | 3.5 mm Mini-Jack (3 Position) Female |
DVI-I (29 pin) Female | |
USB B (4 pin) Female | |
VGA (15 pin, High Density D-Sub) Female | |
Environmental | |
Humidity | 80% RH |
Operating Temperature | 0?C to 40?C (32?F to 104?F) |
Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
Hardware | |
Audio | Yes |
Cables Included | No |
Daisy-Chain | No |
KVM Ports | 2 |
Number of Monitors Supported | 2 |
PC Interface | USB |
PC Video Type | DVI+VGA |
Rack-Mountable | No |
Indicators | |
LED Indicators | Green - PC Detected |
Green - Power | |
Red - PC Indicator | |
Packaging Information | |
Shipping (Package) Weight | 1.2 kg [2.7 lb] |
Performance | |
DVI Support | Yes - Single Link |
Hot-Key Selection | Yes |
IP Control | No |
Maximum Digital Resolutions | 1920 x 1200 |
Maximum Number of Users | 1 |
MTBF | 64,691 Hours |
On-Screen Display | No |
Port Selection Support | Push Button and Hotkeys |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel |
Product Depth | 100 mm [3.9 in] |
Product Height | 57 mm [2.2 in] |
Product Length | 163 mm [6.4 in] |
Product Weight | 750 g [26.5 oz] |
Product Width | 160 mm [6.3 in] |
Power | |
Center Tip Polarity | Positive |
Input Current | 0.8A |
Input Voltage | 110V-240V AC |
Output Current | 1.5A |
Output Voltage | 12 DC |
Plug Type | M |
Power Consumption (In Watts) | 18 |
Power Source | AC Adapter Included |
Software | |
OS Compatibility | OS independent; No software or drivers required |
Special Notes / Requirements | |
Note | This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables. |
What's in the Box | |
Included in Package | 2-port KVM switch |
foot pads | |
instruction manual | |
universal power adapter (NA/EU/UK/AU) |
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
Note: If you're connecting a digital display to the DVI console port, it is recommended you use a DVI-D digital cable. However, if you're connecting an analog display (adapter required), it is recommended you use a DVI-I or a DVI-A cable.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
