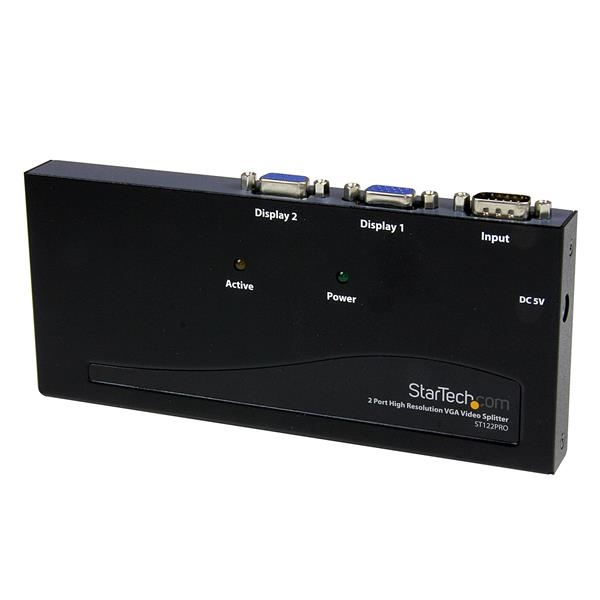

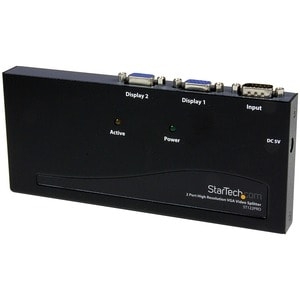

Startech 2 Port High Resolution Vga Video Splitter - 350 Mhz St122pro
Fitted with one VGA input and two VGA outputs, the StarTech ST122PRO video splitter accepts one VGA source and distributes it to two VGA displays, great for classrooms, tradeshows, retail facilities, and other settings where multiple screens are needed to broadcast your message. It supports display resolutions up to 2048x1536 @80Hz, and features an integrated booster circuit, enabling video extension of up to 210 feet (65 meters). This splitter is also daisy-chainable for multi-level expansion. And its sleek, compact profile allows it to easily fit into any environment.
SUPERIOR PICTURE QUALITY
This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. Its high-quality construction and high-resolution support maintain signal strength for crisp, sharp imaging.
VIDEO SIGNAL BOOSTER
The built-in video amplifier boosts the signal to allow a cable length of up to 210 feet (65 meters).
DAISY-CHAINABLE DESIGN
You can daisy-chain multiple splitters for almost unlimited expansion.
Brand
StarTech
Model
ST122PRO
Details
Specification
Ports In:1 x High Density 15 pin Male
Ports Out:2 x High Density 15 pin Female
Color: Black
Maximum Video Resolutions: 2048 x 1536
Number of Ports: 2
Power Adapter Included
Signal Type: XGA, VGA, SVGA, Multisync Monitor
Cable Length: 65m (210 ft.) maximum
VGA Bandwidth (-3db): 350 MHz
VGA Resolution: 2046 x 1536 @ 80 Hz
Power Adapter: 9V AC, 600mA
EDID Support
Feature
Feature
Allows one computer to provide simultaneous displays on 2 different monitors
Built-in video amplifier boosts the signal to allow a cable length of up to 210 ft or 65m
Daisy chainable for almost unlimited expansion
DDC compatible (all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to Video Out 1)
High video bandwidth (350 Mhz) provides crystal clear 2048 x 1536 resolution
Includes AC 120V power adapter
Uses standard monitor extension cables (StarTech coaxial VGA cables recommended for best picture quality)
Works with VGA, SVGA and Multisync monitors
Dimensions & Weight
Dimensions
8.82" x 3.35" x 0.79"
Weight
2.54 lbs.
General Information
Brand Name: StarTech.com
Manufacturer Part Number: SV231DPDDUA
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information:
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch combines the next generation of digital display interface standards with seamless USB KVM control of connected PC or Mac computers.
The world's first Dual Monitor DisplayPort KVM switch allows you to switch between two high-end machines, with dual head or twin DisplayPort video cards in each. The switch can also provide the ideal solution for computers with a single DisplayPort video out, and a second video source such as DVI, using a low cost accessory adapter.
Delivering ideal multi-computer control for demanding high-resolution multimedia applications, or computer environments requiring true high definition capability, the robust dual view KVM switch supports Dual DisplayPort connections with native resolutions of 2560 x 1600 (@60 Hz, 30 bpp), as well as 2-channel stereo audio and microphone input.
Suitable for applications that utilize high quality static imaging, such as medical/health care applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
Product Model: SV231DPDDUA
Product Name: 2 Port Dual DisplayPort USB KVM Switch with Audio
Product Type: KVM Switchbox
Interfaces/Ports
DisplayPort: Yes
Number of USB Ports: 6
USB: Yes
Miscellaneous
Green Compliant: Yes
Physical Characteristics
Depth: 100.1 mm
Height: 57.7 mm
Weight (Approximate): 1.20 kg
Width: 161 mm
Power Description
Input Voltage: 12 V DC
Technical Information
Number of Computers Supported: 2
Video
Graphic Mode: WQUXGA
Maximum Video Resolution: 3840 x 2400
Performance | |
Maximum Cable Length | 65 m [213.2 ft] |
MTBF | 1,588,136 Hours |
Physical Characteristics | |
Color | Black |
Product Height | 21 mm [0.8 in] |
Product Length | 180 mm [7.1 in] |
Product Weight | 1 kg [2.1 lb] |
Product Width | 80 mm [3.1 in] |
Power | |
Output Current | 0.6A |
Output Voltage | 5 DC |
Plug Type | N |
Power Consumption (In Watts) | 3 |
Power Source | AC Adapter Included |
What's in the Box | |
Included in Package | 2 Port High Res. Video Splitter |
Instruction Manual | |
Power Adapter | |
Rubber feet | |
Performance | |
Maximum Analog Resolutions | 2048x1536 @ 80Hz |
General Specifications | Male to Female VGA extension cable required (MXT101HQ) |
Bandwidth | (-3db): 350 MHz |
Packaging Information | |
Shipping (Package) Weight | 1.1 kg [2.5 lb] |
Hardware | |
Regulatory Approvals | FCC Part 15 Class A, CE Mark |
Ports | 2 |
Industry Standards | DDC compatible - all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to Video Out 1 |
Audio | No |
Environmental | |
Operating Temperature | 5?C to 40?C (41?F to 104?F) |
Humidity | 0~80% RH Non-condensing |
Connector(s) | |
Connector Type(s) | VGA (15 pin, High Density D-Sub) Male |
VGA (15 pin, High Density D-Sub) Female |
The ST122PRO 2 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 2 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed.
This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.Male to Female VGA extension cable required (MXT101HQ)
