Startech 2 Port Pci Express Pcie Superspeed Usb 3.0 Card Adapter With Uasp - Sata Power - Dual
QUICK OVERVIEW
2 Port PCI Express PCIe SuperSpeed USB 3.0 Card Adapter with UASP - SATA
Power - Dual Port USB 3 PCIe Controller - PCI Express USB 3.0 Add-on Card -
5Gbps USB 3 Adapter Card
by Startech
Category: Connectivity Devices
Sub Category: Usb & Firewire Connectivity
Product Type: Usb Connectivity Devices
Add 2 SuperSpeed USB 3.0 ports with SATA power to your PCI Express-enabled PC.

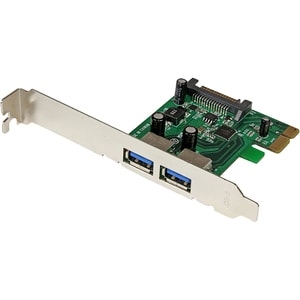

The PEXUSB3S24 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to
your PCI Express-enabled computer system, with an optional SATA power connector
to connect to your system power supply and deliver up to 900mA of power per port
to USB 3.0 bus-powered devices (500mA for USB 2.0).
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller
performs up to 70% faster than conventional USB 3.0 when paired with a UASP
supported enclosure (Note: UASP is not supported by all operating systems).
Using a more efficient protocol than the traditional USB BOT (Bulk-Only
Transport), UASP technology optimizes transfers by allowing multiple commands to
be processed simultaneously, significantly increasing transfer speeds for less
wait time on data transfers. See our UASP test results below for further
details.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer
speeds up to 5 Gbps, while still offering backward compatibility with existing
USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped
with a standard profile bracket and includes a low-profile/half-height bracket
for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or
later. In testing UASP performed with up to a 70% faster read / 40% faster write
speed over traditional USB 3.0 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required
processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com
add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III
solid state drive.
Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express
Product Type: USB Adapter
Total Number of USB Ports: 2
| Hardware | |
| Ports | 2 |
| Packaging Information | |
| Shipping (Package) Weight | 130 g [4.6 oz] |
| Performance | |
| Maximum Cable Length | 3 m [9.8 ft] |
| Maximum Data Transfer Rate | 5 Gbps |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Physical Characteristics | |
| Product Height | 120 mm [4.7 in] |
| Product Length | 65 mm [2.6 in] |
| Product Weight | 40 g [1.4 oz] |
| Product Width | 18 mm [0.7 in] |
| Software | |
| OS Compatibility | Windows? Vista, 7, 8, 8.1, 10 Windows Server? 2008 R2, 2012, 2012 R2, 2016 Linux 2.6.31 to 4.11.x LTS versions only |
| Special Notes / Requirements | |
| Note | The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. |
| System and Cable Requirements | Available PCI Express slot |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| Low Profile Bracket | |
| PCI Express USB 3.0 Card | |
| Hardware | |
| Port Style | Integrated on Card |
| Interface | USB 3.0 |
| Industry Standards | USB 3.0 Specification Rev. 1.0 PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.0 |
| Chipset ID | Renesas/NEC - ?PD720202 |
| Card Type | Standard Profile (LP bracket incl.) |
| Bus Type | PCI Express |
| Environmental | |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Humidity | 20-80% RH |
| Connector(s) | |
| Internal Ports | SATA Power (15 pin) Plug |
| External Ports | USB Type-A (9 pin) USB 3.0 Female |
| Connector Type(s) | PCI Express x1 Male |
The PEXUSB3S24 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
