Startech 2 Port Pci Express (pcie) Superspeed Usb 3.0 Controller Card W/ Sata Power - Pcie Usb
QUICK OVERVIEW
2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Controller Card w/ SATA Power -
PCIe USB 3.0 Card - Dual Port PCI Express USB 3 Adapter - 5 Gbps USB 3.0 PCIe
Controller
by Startech
Category: Storage
Sub Category: Solid State Drives
Product Type: Expresscard Solid State Drives (Ssd)

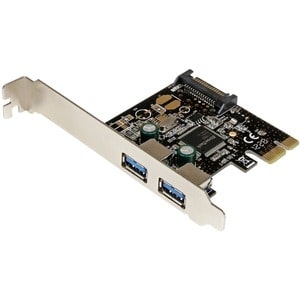

Add two USB 3.0 ports to your desktop computer through a PCI Express slot. The
PEXUSB3S23 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to any
PCI Express-enabled computer system. The USB card requires SATA power for
functionality, and delivers 900mA of power per port to USB 3.0 bus-powered
devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer
speeds up to 5 Gbps, while still offering backward compatibility with existing
USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped
with a standard profile bracket and includes a low-profile/half-height bracket
for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express x1
Product Type: USB Adapter
Total Number of USB Ports: 2
| Packaging Information | |
| Shipping (Package) Weight | 130 g [4.6 oz] |
| Performance | |
| Maximum Cable Length | 3 m [9.8 ft] |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | No |
| Physical Characteristics | |
| Product Height | 120 mm [4.7 in] |
| Product Length | 80 mm [3.1 in] |
| Product Weight | 60 g [2.1 oz] |
| Product Width | 21 mm [0.8 in] |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 |
| Special Notes / Requirements | |
| System and Cable Requirements | Available 15-pin SATA power connector |
| Available PCI Express slot | |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| Low Profile Bracket | |
| PCI Express USB 3.0 card | |
| Hardware | |
| Ports | 2 |
| Port Style | Integrated on Card |
| Interface | USB 3.0 |
| Chipset ID | Etron - EJ168A |
| Card Type | Standard Profile (LP bracket incl.) |
| Bus Type | PCI Express |
| Environmental | |
| Storage Temperature | 0?C to 80?C (32?F to 176?F) |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Humidity | 10~90% RH, Non-condensing |
| Connector(s) | |
| Internal Ports | SATA Power (15 pin) Plug |
| External Ports | USB Type-A (9 pin) USB 3.0 Female |
| Connector Type(s) | PCI Express x1 Male |
The PEXUSB3S23 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
