Startech 2 Port Pci Express Sata 6 Gbps Esata Controller Card - Dual Port Pcie Sata Iii Card - PEXESAT322I
QUICK OVERVIEW
2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA
III Card - 2 Int/2 Ext - SATA III 6Gbps PCI-e Card
by Startech
Category: Connectivity Devices
Sub Category: Serial/Parallel & I/O Cards
Product Type: Serial Cards

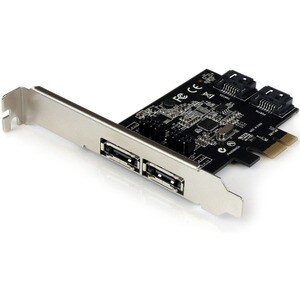

Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI
Express slot.The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives
you the option to add 2 internal or external SATA ports to your computer,

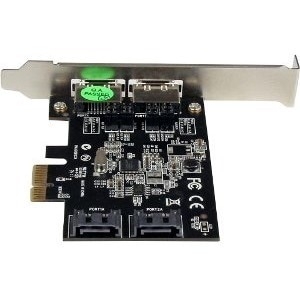

through a single PCI Express (x1) card slot. The card features on board jumper
selection, which enables you to configure the card to provide 2 internal or
external SATA III ports, or one of each, as needed.The SATA III card features
Port Multiplier (PM) support on each port, which allows multiple drives to be
connected over a single cable when necessary to maximize the number of SATA
device connections while reducing the amount of cabling required.The card is
fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data
bandwidth), enabling you to utilize the speeds of high performance hard drives
and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM,
DVD-ROM, Blu-Ray).The PEXESAT322I SATA III Controller card is backed by our
2-year manufacturer warranty and free lifetime technical support.
Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express x1
Number of Ports: 2
Product Type: Serial ATA Controller
| Connector(s) | |
| Connector Type(s) | PCI Express x1 Male |
| External Ports | eSATA (7 pin, Data) Plug |
| Internal Ports | SATA (7 pin, Data) Plug |
| Environmental | |
| Humidity | 5% ~ 85% RH |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | ASMedia - ASM1061 |
| Interface | eSATA & SATA |
| Port Style | Integrated on Card |
| Ports | 2 |
| Packaging Information | |
| Shipping (Package) Weight | 151 g [5.3 oz] |
| Performance | |
| ATAPI Support | Yes |
| Bootable | Yes |
| LBA support | 48-bit |
| Number of Drives Supported Through Port Multiplier | 1 to 4 |
| Number of Ports That Support Port Multiplier | 2 (can use 2 PM at a time) |
| Port Multiplier | Yes |
| RAID | No |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Product Height | 20 mm [0.8 in] |
| Product Length | 121 mm [4.8 in] |
| Product Weight | 44 g [1.6 oz] |
| Product Width | 92 mm [3.6 in] |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| Low Profile Bracket | |
| PCIe SATA Controller | |
| SATA Cable | |
The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
