Startech 2-to-1 Rj45 Splitter Cable Adapter - Network Splitter - Rj-45 (m) - Rj-45 (f) Rj45splitter

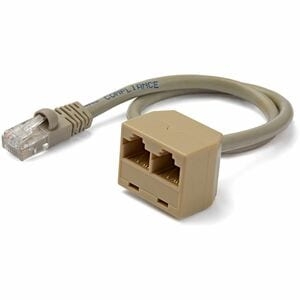

2-to-1 RJ45 Splitter Cable Adapter - Network splitter - RJ-45 (M) - RJ-45 (F)
by Startech
Category: Cables
Sub Category: Network Cables
Product Type: Twisted Pair Cables & Adapters
This 2-to-1 RJ45 Splitter Cable Adapter increases the number of RJ45 network
connections on an RJ45 outlet, allowing two 10/100 Ethernet signals through a
single Cat5/Cat5e wire.Please note that the the RJ45 Splitter cable requires a
second RJ45 Splitter cable at the opposite end of the line.
Brand Name: StarTech.com
Connector on First End: 1 x RJ-45 Male
Connector on Second End: 2 x RJ-45 Female
Product Type: Network Cable
| What's in the Box | |
| Included in Package | 2-to-1 RJ45 Splitter Cable Adapter - F/M |
| Physical Characteristics | |
| Wire Gauge | 24 AWG |
| Product Weight | 0 kg [0.1 lb] |
| Product Length | 330 mm [13 in] |
| Cable Length | 330 mm [13 in] |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0.1 lb] |
| Hardware | |
| Number of Conductors | 8 |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Connector(s) | |
| Connector B | RJ-45 Female |
| Connector A | RJ-45 Male |
The RJ45SPLITTER 2-to-1 RJ45 Splitter Cable Adapter increases the number of RJ45 network connections on an RJ45 outlet, allowing two 10/100 Ethernet signals through a single Cat5/Cat5e wire.
On one end of the installation the splitter enables you to connect two patch cables from a hub or switch to a single port on a patch panel; while on the other end of the installation the splitter connects to a single Cat5/Cat5e network drop through a wall outlet which can then be split and connected to two separate devices. The patch panel and wall outlet are connected through a single Cat5/Cat5e cable.
Designed and constructed for maximum durability, this Ethernet Splitter Cable is backed by StarTech.com's Lifetime Warranty.
