Startech 20m Usb 2.0 Active Extension Cable - M/ F Usb2aaext20m

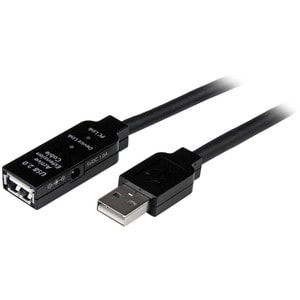

20m USB 2.0 Active Extension Cable - M/F
by Startech
Category: Connectivity Devices
Sub Category: Serial/Parallel & I/O Cards
Product Type: Serial Cards
Extend the distance between a computer and a USB 2.0 device by 20 meters. The
USB2AAEXT20M 20-meter Active USB 2.0 Extension Cable, offers one USB type-A
(male) connector and one USB type-A (female) connector, and provides an active
extension of USB 2.0 devices of up to 20-meters (66-feet).An all-in-one cable
for overcoming distance restrictions as well as power source limitations, the
active USB 2.0 extension cable incorporates bus-powered active circuitry to
ensure performance beyond the length limits of standard USB cables. Up to 2 of
these cables can be daisy-chained together, allowing the connection to be
extended a total of 40-meters. If necessary, the USB device can be powered from
a wall outlet using the Universal AC power adapter provided with the cable.The
USB2AAEXT20M extension cable (USB Extender) supports transfer rates of up to 480
Mbps, and is backed by StarTech.com''s 2-year Warranty.
Brand Name: StarTech.com
Cable Length: 20 m
Cable Type: USB
Colour: Black
Connector on First End: 1 x Type A Male USB
Connector on Second End: 1 x Type A Female USB
Packaged Quantity: 1
Product Type: Data Transfer Cable
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.35 A |
| Input Voltage | 110V-240V AC |
| Output Current | 1A |
| Output Voltage | 5 DC |
| Plug Type | H |
| Power Consumption (In Watts) | 5 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| Note | Cascade two USB2AAEXT20M devices together for further extension |
| What's in the Box | |
| Included in Package | 20 m USB 2.0 Active Extension Cable - M/F |
| Plug Adapters for North America, UK, Europe, and Australia | |
| Universal Power Adapter | |
| Physical Characteristics | |
| Product Weight | 866 g [30.6 oz] |
| Product Length | 20 m [65.6 ft] |
| Color | Black |
| Cable Length | 20 m [65.6 ft] |
| Packaging Information | |
| Shipping (Package) Weight | 1 kg [2.2 lb] |
| Package Quantity | 1 |
| Hardware | |
| Connector Plating | Nickel |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Environmental | |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Operating Temperature | 0?C to 70?C (32?F to 122?F) |
| Connector(s) | |
| Connector B | USB Type-A (4 pin) USB 2.0 Female |
| Connector A | USB Type-A (4 pin) USB 2.0 Male |
The USB2AAEXT20M 20m Active USB 2.0 Extension Cable offers one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices of up to 20-meters (66-feet).
An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Plus you can daisy chain 2 cables for a total USB extension of up to 40-meters.
If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter (provided with the cable).
The USB2AAEXT20M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.
