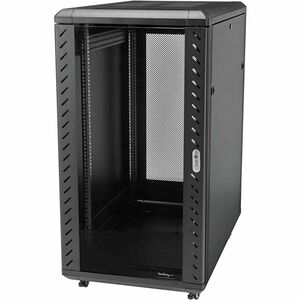

Startech 22u 36in Knock-down Server Rack Cabinet With Casters Rk2236bkf
StarTech.com's 22U 36in (depth) server rack features a vented glass front door and mesh rear door that provide devices stored in the cabinet with energy and cost-efficient passive cooling.Supporting a total load capacity of 800 kgs (1760 lbs), the server rack is constructed of steel and aluminum to provide a sturdy platform for valuable server/networking equipment.The rack is easy to assemble at the point of installation for rapid deployment and features a flat-packed design that helps minimize shipping costs.
Brand Name: StarTech.com
Depth: 899.2 mm
Height: 1110 mm
Material: Aluminium Frame
Material: Glass Door
Material: Steel Front Door
Material: Steel Rear Door
Product Type: Rack Cabinet
Rack Height: 22U
Rack Width: 914.40 mm
Weight (Approximate): 67.50 kg
Width: 599.4 mm
Manufacturer: StarTech.com
Marketing Information:
StarTech.com's 22U 36in (depth) server rack features a vented glass front door and mesh rear door that provide devices stored in the cabinet with energy and cost-efficient passive cooling.
Supporting a total load capacity of 800 kgs (1760 lbs), the server rack is constructed of steel and aluminum to provide a sturdy platform for valuable server/networking equipment.
The rack is easy to assemble at the point of installation for rapid deployment and features a flat-packed design that helps minimize shipping costs.
Product Name: 22U 36in Knock-Down Server Rack Cabinet with Casters
Product Type: Rack Cabinet
Miscellaneous
Additional Information:
Applicable in Server rooms or other locations where servers and networking equipment need to be housed
Easy assembly at the point of installation for rapid deployment
Flat-packed design reduces handling costs
Vented glass front door and mesh rear door for excellent passive cooling
Green Compliance Certificate/Authority: RoHS
Green Compliant: Yes
Physical Characteristics
Depth: 899.2 mm
Height: 1110 mm
Material: Aluminium Frame
Glass Door
Steel Front Door
Steel Rear Door
Maximum Weight Capacity: 800 kg
Rack Height: 22U
Rack Width: 914.40 mm
Weight (Approximate): 67.50 kg
Width: 599.4 mm
Warranty
Limited Warranty: 2 Year
Hardware | |
Industry Standards | DIN41491 Part I |
EIA RS310-D | |
EIA-310-D | |
IEC297-2 | |
Ladder Offset | 0 mm [0 in] |
Ladder Type | G-Shape G-Shape offset: 0.31 in [8 mm] |
Mounting Holes | Square |
Number and Type of Included Cage Nuts | M6 |
Rack Type | 4-Post |
Side Panel Construction | Aluminum |
Side Panel(s) Key Lock | Yes |
Tools Included | No |
U Height | 22U |
U Markings | Yes |
Wallmountable | No |
Packaging Information | |
Flat Pack (Assembly Required) | Yes |
Shipping (Package) Weight | 68.7 kg [151.8 lb] |
Performance | |
Ventilation Capacity | 40% - Back door, 27% - Top |
Weight Capacity (Stationary) | 800 kg [1768 lb] |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel |
External Depth | 1005 mm [39.6 in] |
External Height | 1112 mm [43.8 in] |
External Width | 603 mm [23.7 in] |
Height with Casters | 1183 mm [46.6 in] |
Internal Depth | 990 mm [39 in] |
Internal Height | 1028.7 mm [40.5 in] |
Internal Width | 580 mm [22.8 in] |
Maximum Mounting Depth | 830 mm [32.7 in] |
Minimum Mounting Depth | 140 mm [5.5 in] |
Product Height | 1112 mm [43.8 in] |
Product Length | 1005 mm [39.6 in] |
Product Weight | 67.5 kg [149.2 lb] |
Hardware | |
Front Door Reversible and/or Removable | Removable |
Front Door Key Lock | Yes |
Front Door Construction | Glass |
Frame Type | Enclosed Cabinet |
Fan(s) | No |
Casters | Included |
Cable Management | No |
Back Door Reversible and/or Removable | Removable |
Back Door Key Lock | Yes |
Back Door Construction | Aluminum |
Adjustable Mounting Rails | No |
Additional Required Tools | Phillips Screwdriver |
Physical Characteristics | |
Product Width | 603 mm [23.7 in] |
Rail Thickness | 1.5 mm [0.1 in] |
What's in the Box | |
Included in Package | Adjustable Feet |
Allen Wrench | |
Assembly screw kit (M4,M5,M6,M8) | |
Casters | |
Corner Caps | |
Joints | |
Left and Right Panel and frame | |
M6 screws and Nuts | |
Sets of keys. | |
Top and Bottom Panels |
This server rack provides 22U of storage space in a sleek secure cabinet for storing EIA-310 compliant 19? rackmount devices such as Dell, HP and IBM servers along with telecommunication and A/V equipment. The rack creates a robust storage solution supporting a total load capacity of 800 kg. (1760 lbs.).
Hassle-free equipment installation
This rack has been engineered with different features that enable you to easily incorporate plenty of equipment.
With adjustable mounting rails you can easily change the rail depth to up to 39.4 in. (1000mm). These rails ensure the cabinet is widely compatible with your standard rackmountable equipment. The added depth also provides support for additional cable and power management behind your equipment.
The rack features brushed ports on the ceiling and floor panels that enable you to easily run cabling to the inside and outside of the cabinet, for discreet cable management. The floor and ceiling panels can also be removed enabling you to customize your setup, and the rack features grounding lugs that enable you to ground your equipment for added protection.
Securely protect your equipment while still being able to see it
To ensure you have full visibility of your equipment while securely locking it up, this rack has a stylish glass window on the front door. The glass door looks great in any server room, and gives you the freedom to clearly monitor equipment without the hassle of opening your rack.
The rack also has removable side panels with independent locks quick-release mechanisms that enable you to easily access your equipment while still keeping it secure.
Save money, with a cost effective, compact shipping container
The cabinet comes in a flat packed box to reduce shipping volume, which significantly reduces your costs in shipping. Plus, because the rack is packaged efficiently, you can easily store the cabinet, for deployment at a later date.
Maximum Maneuverability, with casters included
The cabinet features casters ensuring hassle-free access to the rear mounted equipment, while providing ease of mobility around your office, studio or server room. Plus, the width and height of the rack fits through standard doorways, giving you the freedom to wheel your server rack into different rooms.
Ensure your equipment is running at an optimal temperature
The rear door on the rack is mesh, and the front glass door is vented, working together to increase airflow to provide passive cooling that?s cost effective and ensures your equipment runs at an optimal temperature.
The top ceiling panel features square venting holes that are cage nut compatible, which provide mounting points that enable you to add additional equipment at the top of your rack. The ceiling panel also features fan mounts that give you the freedom to add fans for equipment that requires active cooling.
The RK2236BKF is backed by a lifetime StarTech.com warranty with free technical support.
